Linear LED Wall Washer Upward Outdoor Aluminum Light

A linear LED wall washer is designed to spread light across a broad vertical surface instead of creating one small pool of illumination. The fixture shown has a long, narrow, dark-toned body with a row of LED points and low-profile mounting feet. In the visible applications, it sits close to stone, concrete, and other architectural walls, sending light upward from grade or downward from an overhang.

This format is useful when the wall itself is part of the nighttime design. A long beam can reveal masonry, define an entrance, or strengthen the rhythm of a tall facade. The images also show why placement matters: some surfaces receive a broad field, while others display pronounced scallops. The final effect depends on the fixture's optics, setback, aiming, mounting height, and the texture being illuminated.

Because only visual information and a core keyword are available, this guide does not assume a housing material, wattage, lumen output, color temperature, beam angle, voltage, control method, or weather rating. Those details should be confirmed in the product specifications before the fixture is selected for an exterior project.

What Defines This Linear LED Wall Washer?

This linear LED wall washer is defined by an elongated rectangular profile, a closely spaced row of light points, and a mounting position that keeps the source visually secondary to the illuminated surface. Its narrow body can align with paving joints, wall bases, parapets, or overhang edges, while the extended luminous line covers more width than a single compact spotlight.

The visible shape is architectural rather than lantern-like. Its dark-toned housing reads as a slim technical element and lets the facade remain the focus. That suits modern homes, restrained landscapes, and hospitality courtyards where stone or concrete is the feature. Browse related wall wash lighting to compare other ways of distributing light across vertical surfaces.

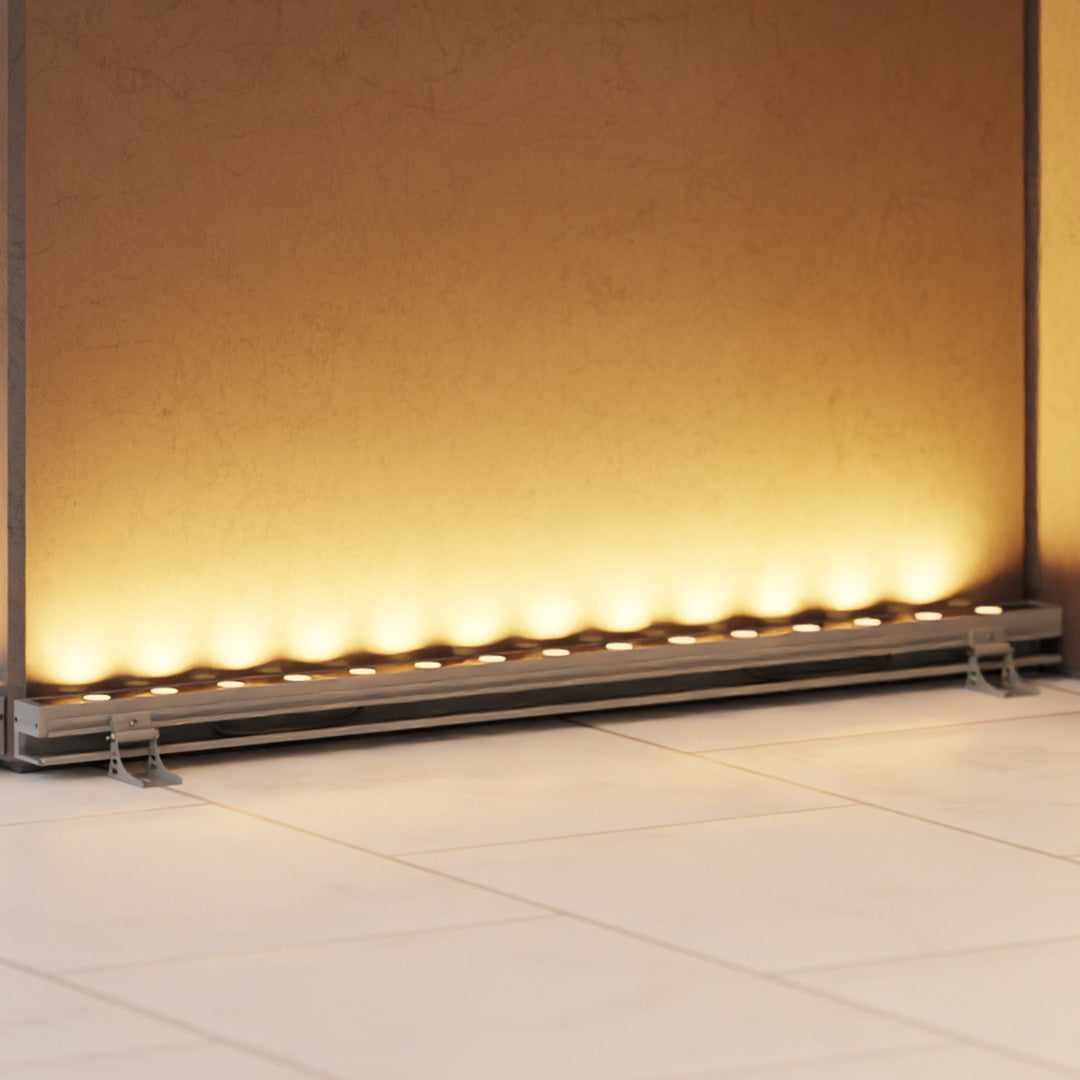

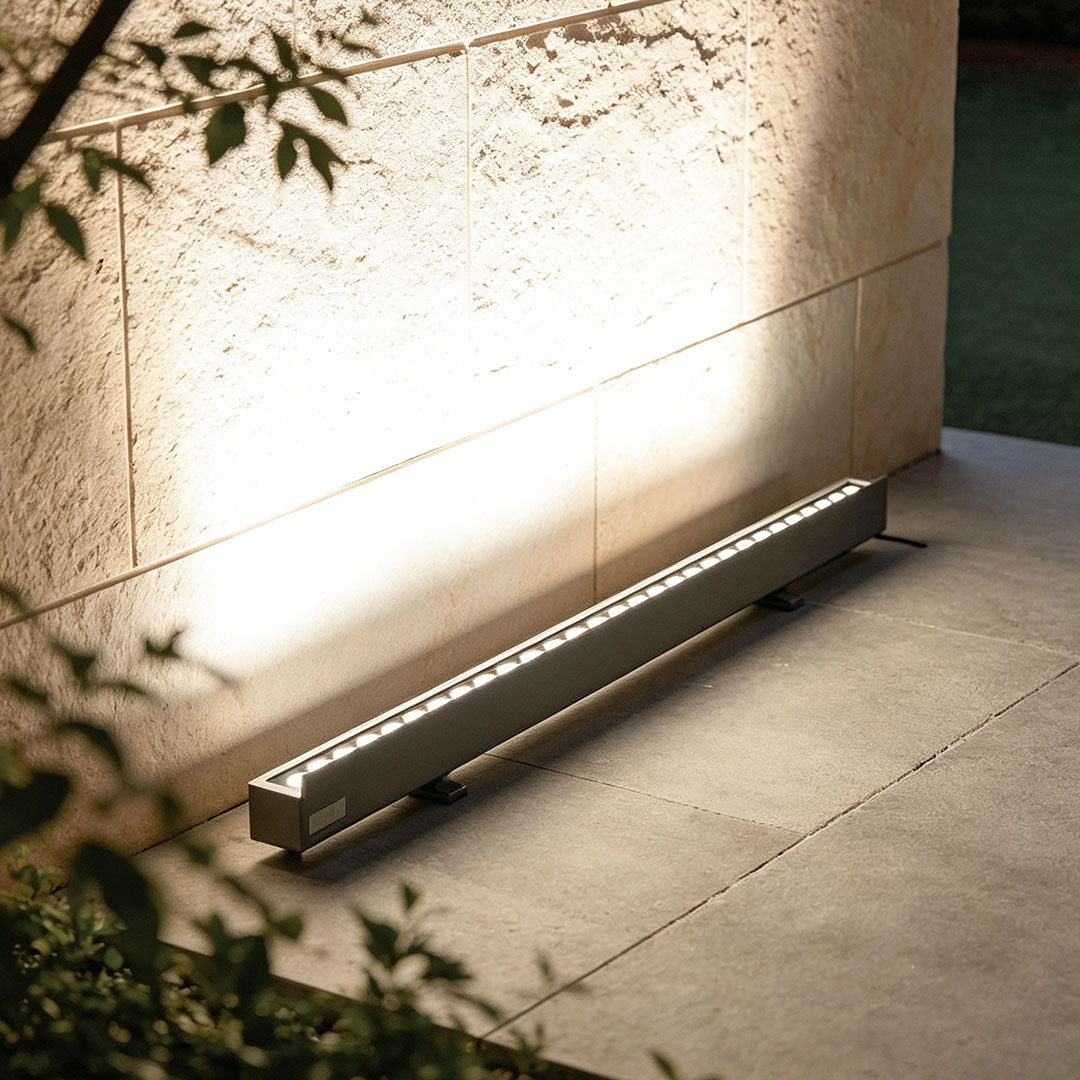

The images show two orientations. At ground level, the fixture sends light upward and gives a tall wall greater presence. Beneath a horizontal edge, it directs light downward. Do not assume every mounting method permits both. Confirm the approved orientation, drainage requirements, cable entry, and aiming range for the exact model.

The visible light points may create a continuous-looking wash at one distance and rhythmic highlights at another. A smoother field suits calm architectural planes; stronger contrast can flatter split-face stone or vertical fins. Choose the goal before finalizing mounting locations, because broad “washing” and close-in “grazing” are related but visually different.

Where Does a Linear Wall Washer Work Best?

A linear wall washer works best where a wide wall, column group, or architectural edge deserves consistent nighttime emphasis. Strong applications include residential entrance walls, courtyard masonry, landscape retaining walls, hotel or restaurant facades, and custom-home elevations. The surface should be large enough to receive the beam, and the installation position should allow testing before permanent fastening.

Residential entrances and garden-facing facades

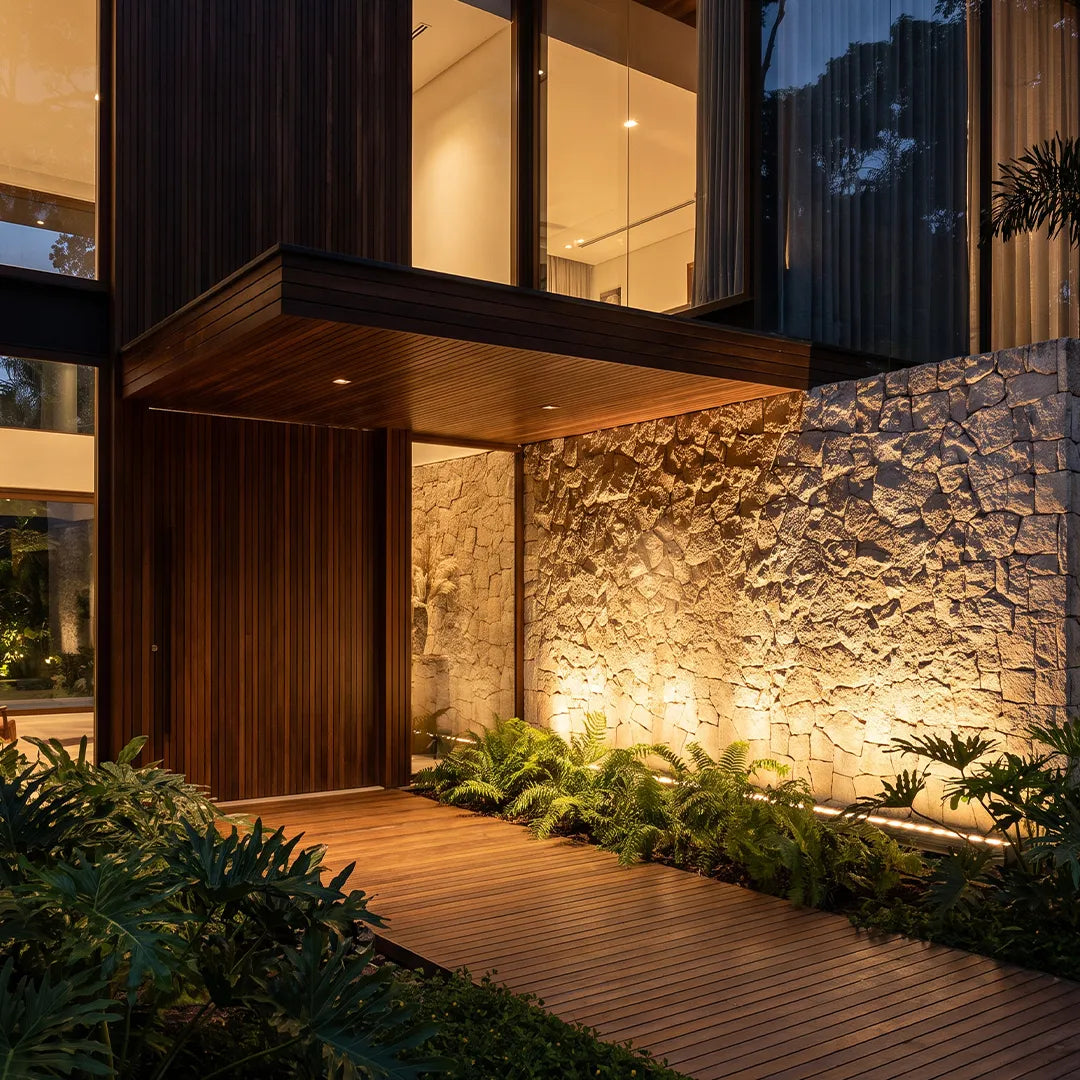

On a modern residence, an upward wash can connect planted foreground to the building. In the image, illuminated stone becomes a backdrop for low planting without adding a decorative fixture to the wall. This works beside an entry walk, recessed doorway, or terrace, but it should accompany dedicated navigation lighting around steps and changes in level.

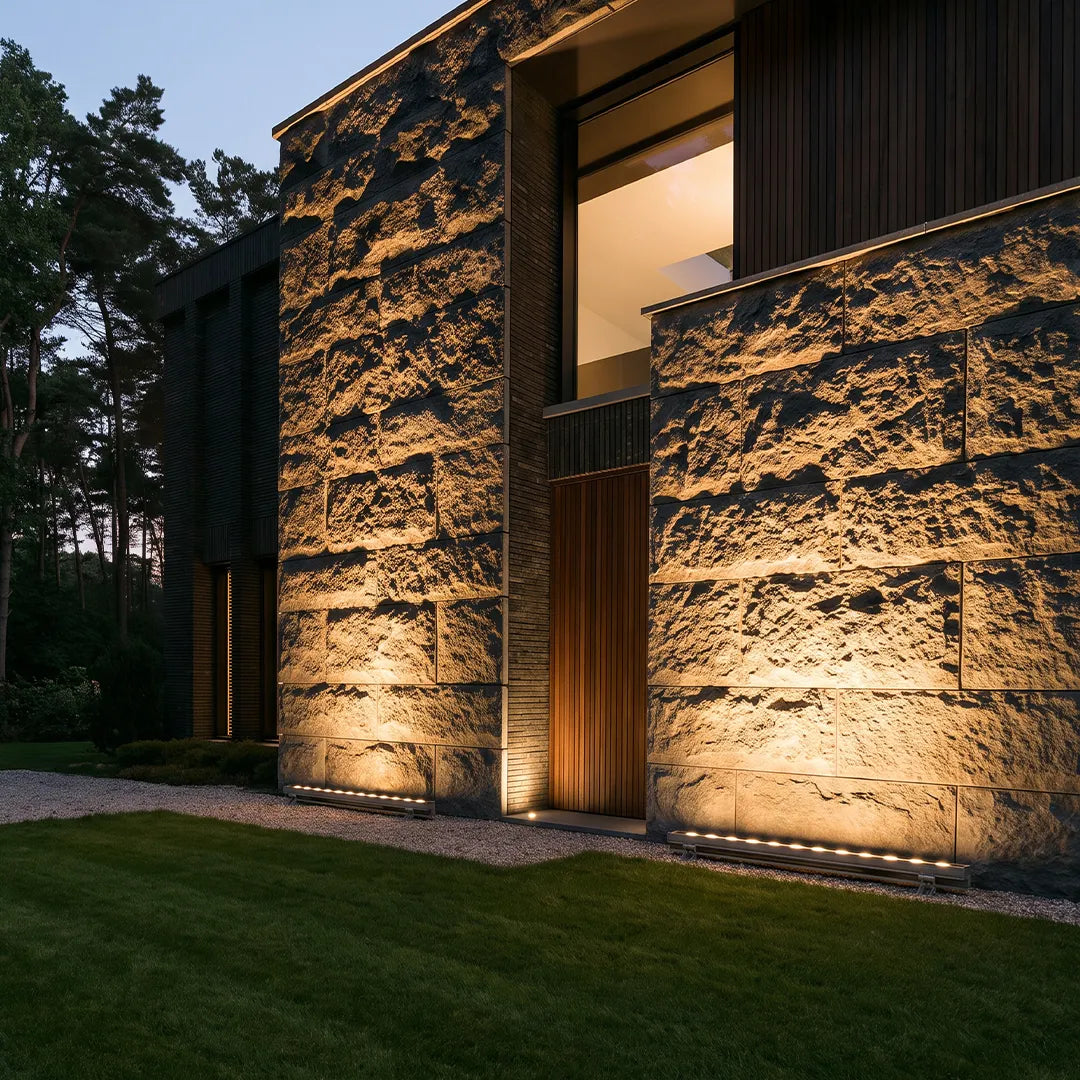

On a tall facade, repeated fixtures can reinforce structural rhythm. Align each run with a meaningful bay instead of spacing units mechanically. A custom home may look more intentional with three precise illuminated fields than with a continuous band that ignores windows, downspouts, joints, and planting.

Courtyards, restaurants, and boutique hospitality spaces

In a restaurant patio or boutique hotel courtyard, a low-mounted wall washer can turn a boundary wall into a designed backdrop for tables and circulation. The project team should coordinate brightness with guests' eye level, nearby rooms, outdoor screens, and local limits on spill light.

At a commercial entrance, repeated linear fixtures can create an arrival sequence without relying on one bright sign. Facade washing works best as one layer in an outdoor lighting plan; doors, addresses, ramps, and stairs may need separate functional light.

Renovations and landscape-led projects

A renovation can give existing masonry new importance after dark, but older walls need inspection. Ledges, patches, caps, vegetation, and utility lines may interrupt the beam. Plan for plant growth and service access; a clear fixture can become hidden after shrubs mature.

How Do Wall Texture, Distance, and Aiming Change the Light?

Wall texture, setback, and aiming determine whether the result feels like a broad wash or a dramatic graze. Positioning the source close to a rough wall usually emphasizes relief and deepens shadows; moving it farther away can help the light spread more evenly. The correct distance cannot be chosen from the image alone, so a nighttime mockup is the safest approach.

Split-face stone, brick, and ribbed cladding respond strongly to shallow-angle light. Projections catch highlights while recesses stay darker. The same technique can expose uneven mortar, stains, patches, or misaligned joints, so inspect the wall by day before emphasizing every irregularity at night.

A smooth wall may benefit from greater setback. Too close, individual LEDs can appear as scallops; too far, output may miss the wall or reach windows. Beam angle, output, lens design, and aiming range must come from the specifications. No single distance suits every linear exterior wall washer.

Professional tip: build one temporary test bay before drilling every mounting point. Place the fixture at the proposed setback, aim it after sunset, and view it from the normal arrival path, the nearest window, and both ends of the wall. Mark the preferred position only after checking the lower hot spot, upper fade, visible LED points, and glare. For a long repeated run, test two adjacent units to see how their beams overlap.

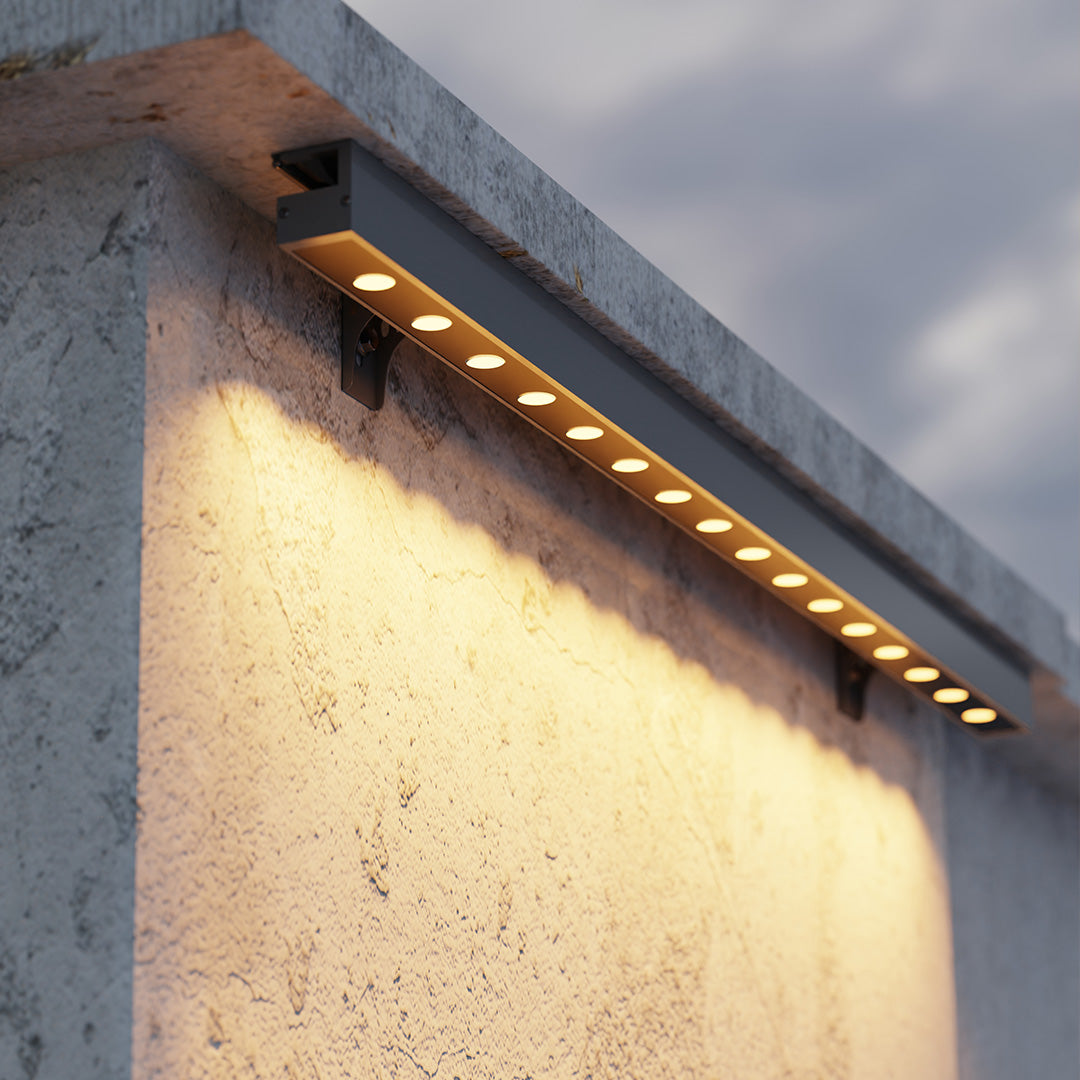

Below an overhang, a downward-facing line can illuminate the upper wall first and fade toward the paving. The source may be visible from below, and the overhang lip may cut off the beam. Confirm the approved orientation and check standing and seated sightlines.

If an illuminated outline matters more than a tall plane, compare this format with outdoor LED strip lights. Strip lighting usually defines an edge or recess, while a wall washer illuminates surface area. They can work together but solve different problems.

Planning Fixture Length, Spacing, and Repeated Runs

Choose fixture length and spacing from the wall dimensions and desired beam overlap, not from the product photo alone. Measure every uninterrupted wall bay, note corners and openings, and compare those dimensions with the listed fixture length and photometric information. For repeated runs, consistent setback, aiming, elevation, and electrical planning matter as much as the number of units.

Draw the elevation rather than measuring only along the ground. Record each surface, door, window, column, wall cap, planter, drain, and expansion joint. Decide whether to light the whole elevation, selected bays, or a lower textured band. This prevents buying enough linear footage while overlooking interruptions.

One fixture may suit a narrow panel, while a retaining wall may require several. Adjacent beams should meet deliberately: excessive overlap creates bright bands, while too little leaves dark gaps. For larger projects, use photometric files or beam diagrams when available and verify the result with a mockup.

Professional tip: establish a repeatable mounting reference. Use the same measured distance from the finished wall face, the same fixture elevation, and the same aiming angle across a run. Do not reference an irregular planting edge or rough stone projection. On masonry, coordinate mounting holes with joints and waterproofing details so the finished alignment remains straight without forcing anchors into weak or unsuitable locations.

Corners need separate attention. An inside corner can concentrate light where surfaces meet; an outside corner may leave one face dark. Treat every change in plane as a new condition. A deliberate gap may look cleaner than forcing a continuous line around incompatible beam directions.

Long runs require coordinated power, drivers, cable routes, switching zones, and service access. The image does not show how units connect or whether drivers are integral. Confirm voltage, load, cable limits, approved connectors, controls, and access before construction closes the wall or paving.

How Should Wall Washing Fit Into an Outdoor Lighting Plan?

Wall washing should provide architectural emphasis, not carry every outdoor lighting task. Use the linear fixture to reveal a facade or boundary wall, then add separate layers for safe walking, doors, steps, gathering areas, and focused landscape accents. This approach controls glare and creates depth while avoiding the flat, overbright result that comes from asking one fixture type to do everything.

A wall washer differs from outdoor flood lights. Flood lighting may cover a broad activity area or facade from farther away, while this linear format suits a controlled band along a wall. Compare beam data and mounting guidance; neither category guarantees a particular coverage area.

Use outdoor spotlights for separate accents on trees, sculptures, columns, or roof details. Their smaller pools contrast with a broad wall wash. Decide which element should dominate and reduce competing layers around it.

Where the source should disappear at grade, recessed well lights may be an alternative. They suit individual columns or trees but require appropriate drainage. The visible surface-mounted bar may offer easier access, although serviceability depends on the model and site.

Navigation remains separate. Add shielded path lights for walkways when the wash does not reveal steps or edges. A bright wall can make an unlit path seem darker as the eye adapts. Evaluate the approach from the user's direction.

Coordinate color appearance across layers, but do not infer Kelvin from the warm renderings. Review the listed color temperature and color-rendering information. Warm light can support stone, wood, and planting; a neutral appearance may suit some concrete facades. Choose from actual materials and neighboring sources.

Is This Linear LED Wall Washer Right for Your Project?

This fixture type is a strong choice for projects that have a meaningful vertical surface, room for a controlled mounting line, and a plan for nighttime aiming. It is less suitable where the source will be easily kicked, submerged, blocked by plants, or aimed into windows. Before ordering, confirm dimensions, optics, output, exterior rating, controls, wiring, and approved mounting orientation.

It suits residential facades, landscaped courtyards, restaurant patios, hotel entries, and custom architecture where texture matters after dark. The slim profile is quieter than a row of decorative wall fixtures, and its extended form aligns with long walls. Here, the illuminated plane becomes the feature.

Choose another solution when there is no suitable receiving surface, planting will cover the fixture, or broad security light is the main need. Reflective glass and polished stone may create glare. On occupied terraces, test seated eye level; a source hidden from a standing viewer may still be uncomfortable.

Measurements and specifications to confirm

• Wall geometry: measure the clear width and height of every plane, plus corners, ledges, openings, and projections.

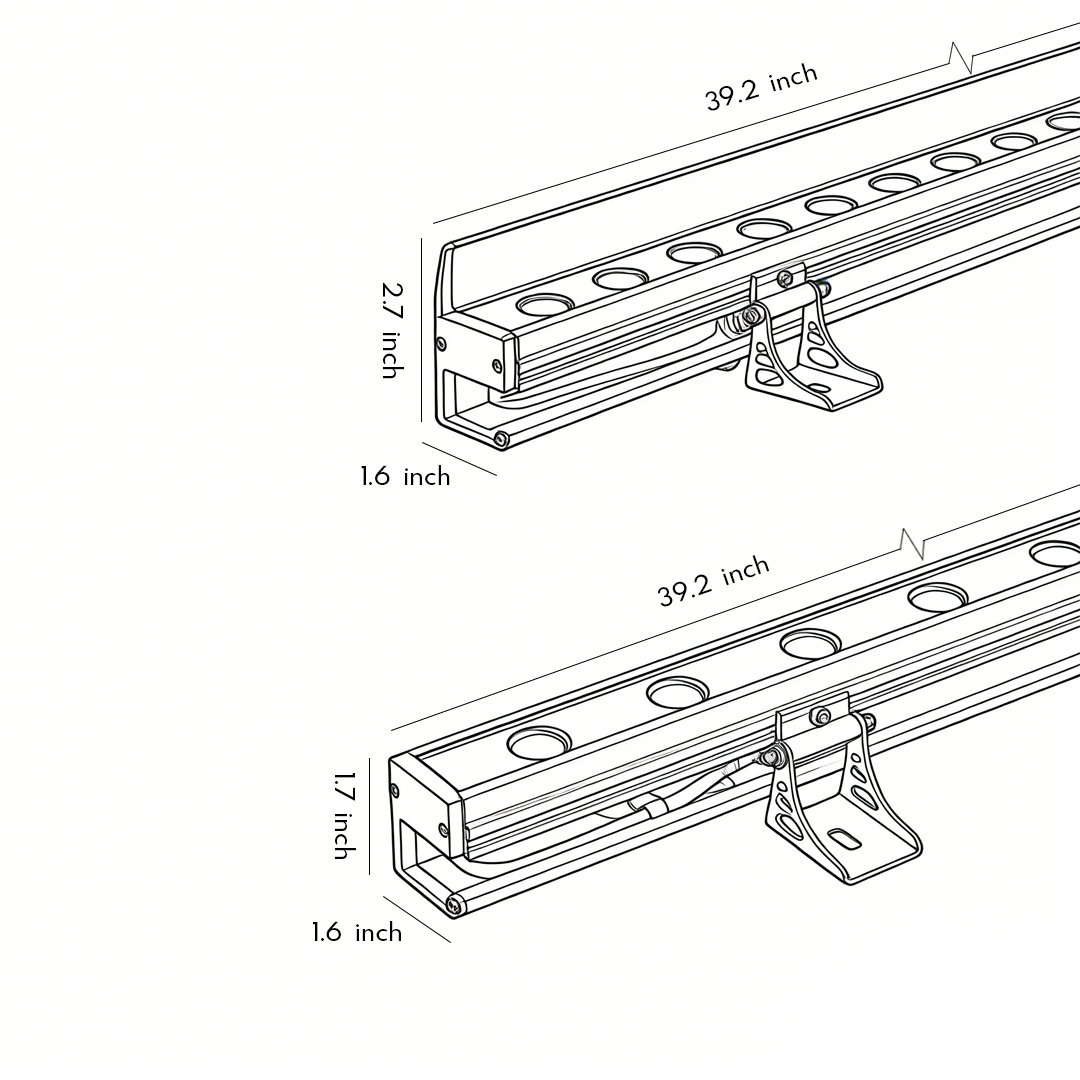

• Fixture fit: verify actual length, width, height, mounting-foot positions, adjustment range, and required service clearance.
• Optical performance: confirm beam angle or distribution, lumen output, color temperature, color rendering, and expected coverage at the planned setback.
• Exterior suitability: verify the listed wet-location or outdoor rating, approved orientation, operating conditions, drainage guidance, and corrosion-related care information.
• Electrical design: check voltage, driver arrangement, dimming or control compatibility, wiring method, circuit load, and whether accessories are included.
• Site safety: preserve walking clearance, avoid trip exposure, coordinate anchors with waterproofing, and keep access for cleaning and service.

Professional installation is advisable for a hardwired exterior run involving masonry, waterproof penetrations, remote drivers, or multiple fixtures. Provide an elevation, mounting dimensions, circuit plan, and manufacturer instructions. Treat the mockup as design coordination, not a correction after holes and cable routes become permanent.

Frequently Asked Questions

What is the difference between a wall wash and a wall graze?

A wall wash aims to cover a vertical surface with a relatively broad, even field of light, while a wall graze places the source close to the surface to exaggerate texture through highlights and shadows. The same linear fixture may produce different effects as setback and aiming change, but its actual optics set the limits. Test the proposed position on the real wall at night, because rough stone, smooth plaster, brick, and ribbed panels respond very differently to shallow-angle light.

How far should a linear LED wall washer be placed from the wall?

There is no universal setback that works for every linear LED wall washer. A close position often creates stronger texture and more visible scalloping, while additional distance may broaden and blend the beam. Wall height, lens distribution, fixture output, mounting elevation, and surface reflectance all affect the result. Use the manufacturer's photometric guidance when available, then confirm it with a full-scale nighttime mockup. Do not permanently drill a repeated run based only on a styled product image or daytime estimate.

Can this fixture be mounted on the ground and under an overhang?

The images show both upward lighting from grade and downward lighting from a horizontal edge, but they do not prove that every supplied mounting method is approved for both orientations. Check the installation instructions for permitted positions, bracket adjustment, cable entry, water management, and required clearances. For an overhang installation, also evaluate visibility from below and access for routine future service. For grade mounting, protect the entire fixture and wiring route from foot traffic, irrigation, debris accumulation, and accidental impact.

Will one wall washer illuminate an entire exterior wall?

That depends on the wall width and height, the fixture's listed length, beam distribution, output, setback, and aiming. One unit may be appropriate for a narrow architectural panel but insufficient for a long facade. Multiple fixtures can extend coverage, although their beams must overlap carefully to avoid dark gaps or bright seams. Divide the elevation into meaningful bays and compare it with available detailed product photometric data. A lighting designer can model larger, repeated, or highly visible installations before purchase.

Does a linear wall washer provide enough light for a walkway?

A wall washer may contribute reflected ambient light near a path, but it should not automatically be treated as dedicated walkway lighting. The illuminated wall can look bright while steps, surface changes, and path edges remain difficult to see. Review the route from the direction people actually travel and add shielded path or step lighting where needed. Functional requirements, local rules, mounting conditions, and the fixture's documented output should guide the complete safety layer rather than the visual rendering alone.

What color temperature is best for stone or concrete walls?

Warm light often brings out tan stone, wood, brick, and planted courtyards, while a neutral appearance may feel appropriate on cool gray concrete or some commercial facades. The right choice depends on the actual surface color, neighboring luminaires, and the atmosphere the project needs. The warm appearance in the images does not establish a Kelvin value. Confirm the offered color temperature and, when possible, test a sample at night against the actual finished wall material before ordering a full run.

How can glare be reduced with a ground-mounted wall washer?

Keep the luminous points outside normal sightlines, aim the beam onto the intended surface, and check views from doors, windows, paths, vehicles, and seated areas. A small change in setback or tilt can reduce direct source visibility, but it may also change coverage. Shielding or louvers may help only if compatible accessories are actually offered for the model. Do not improvise a cover that traps heat or water. Verify approved accessories, ventilation needs, and installation clearances in the product documentation.

What maintenance does an exterior linear wall washer need?

Exterior fixtures can collect soil splash, leaves, mineral deposits, insects, and plant debris, all of which may distort the beam or hold moisture around the housing. Inspect the lens or light-emitting surface, mounting feet, cable entry, and nearby drainage at practical intervals based on site exposure. Use only cleaning methods allowed for the listed finish and lens. Keep vegetation trimmed without damaging wiring, and have a qualified professional promptly address loosened anchors, damaged seals, flicker, visible corrosion, or water intrusion.
