Outdoor Brick Light LED Embedded Stair Wall Ladder Lights

An outdoor brick light is a compact architectural fixture designed to sit within a brick, block, concrete, or similar vertical surface and place illumination close to the ground. The product shown here has a horizontal rectangular face, a dark border, and a recessed-looking illuminated opening. Installed in stair risers and low landscape walls, it creates warm-looking pools of light across the walking surface without introducing posts along the edge.

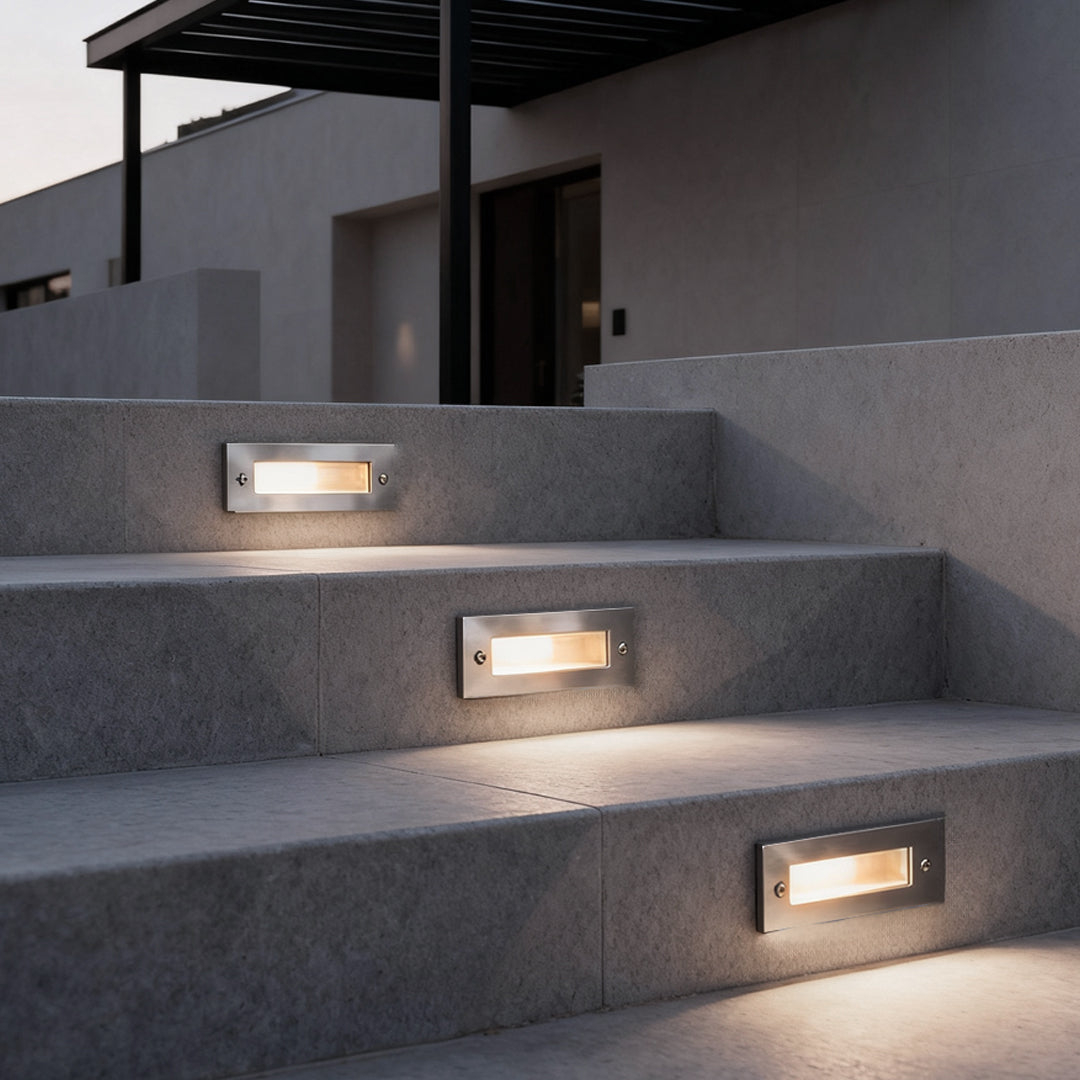

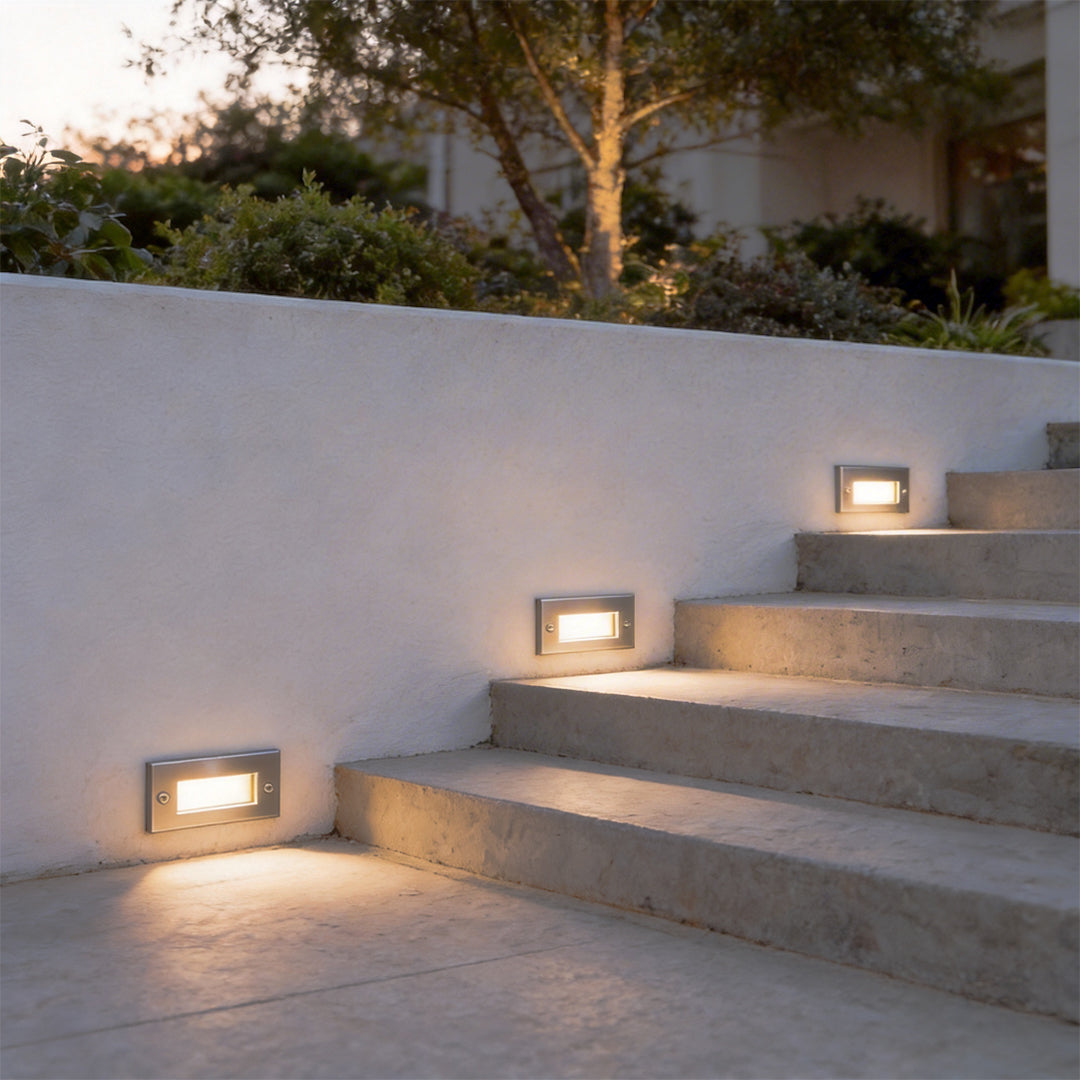

The visible examples show the fixture integrated into pale masonry-style steps beside planting beds, a timber fence, and a swimming-pool terrace. Its dark faceplate forms a crisp outline against the light stone, while the horizontal aperture follows the line of each tread. From some angles the opening reads as one broad window; from others, the internal cutoff creates a more layered, louvered glow. That controlled visual direction is especially useful for modern outdoor stair lighting.

What Defines This Outdoor Brick Light?

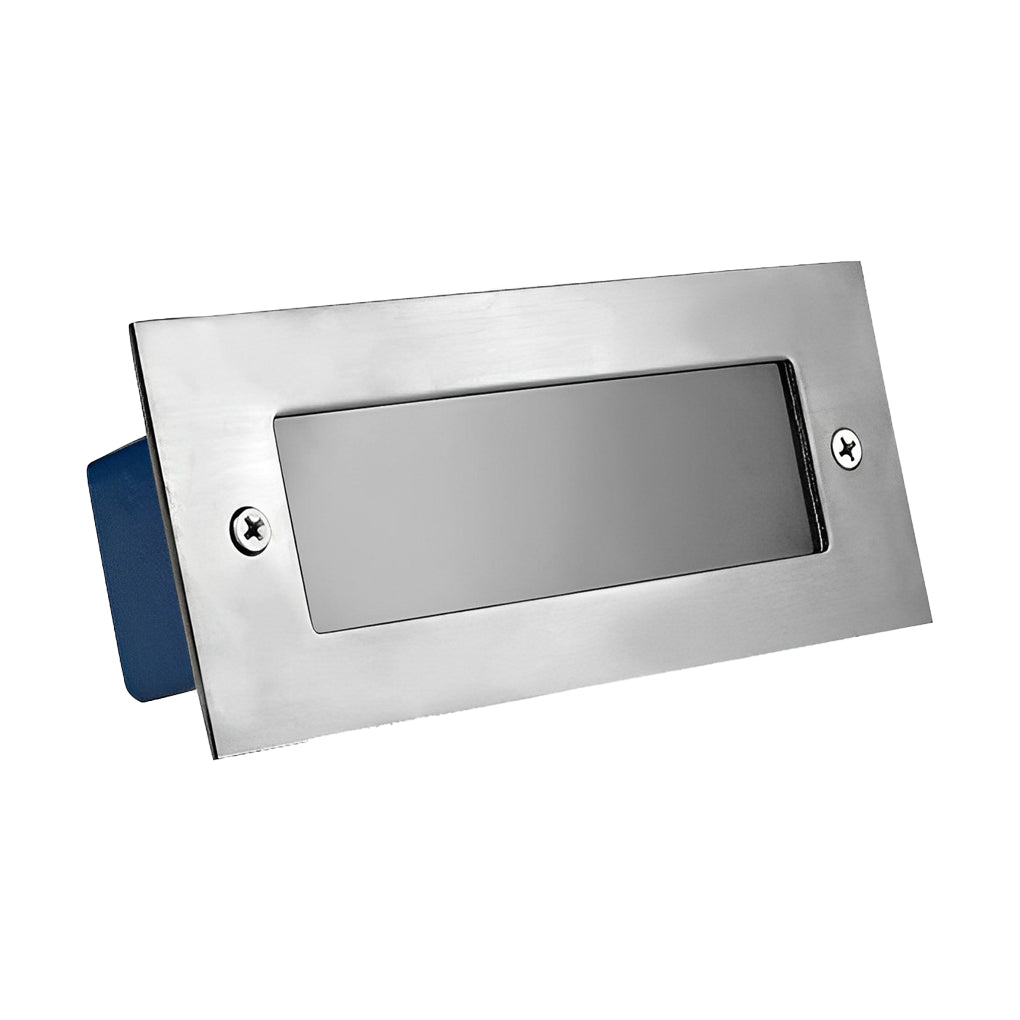

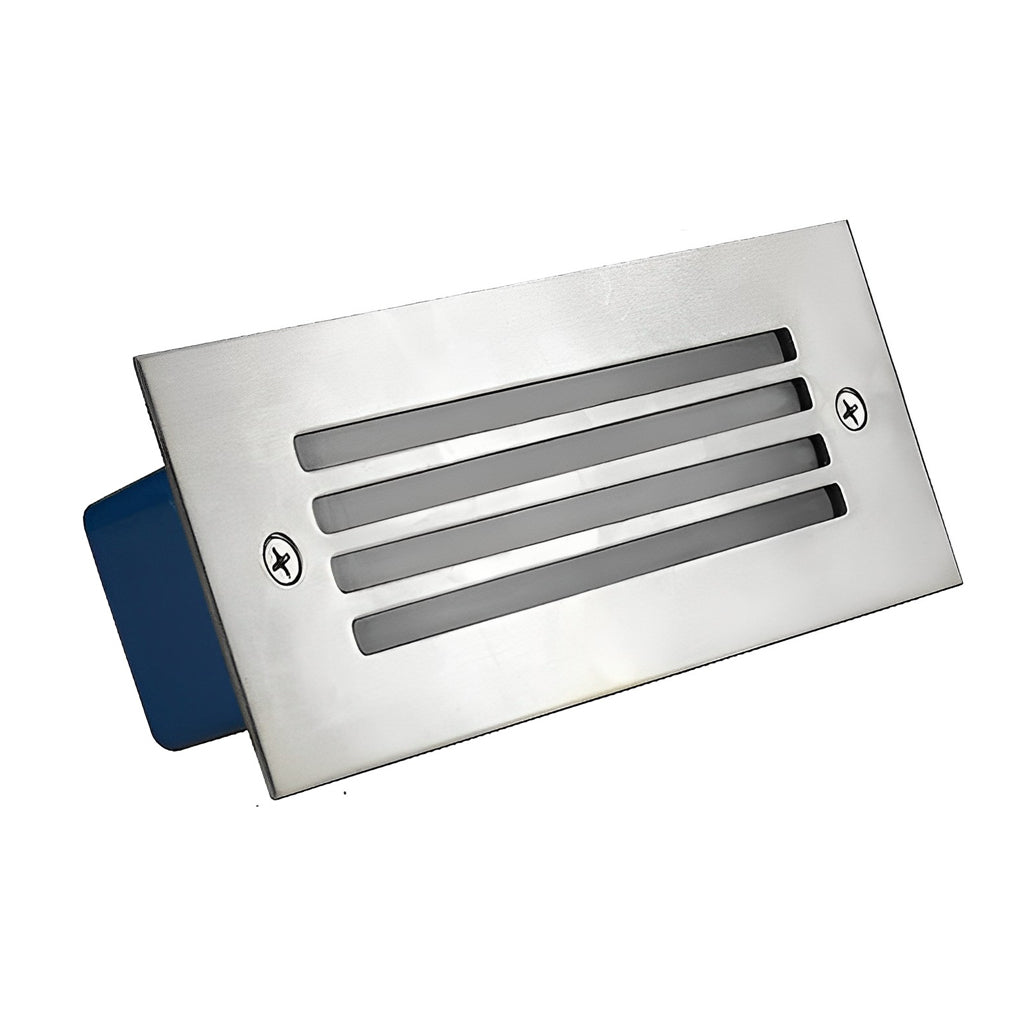

This outdoor brick light is defined by a wide rectangular faceplate, a dark architectural outline, and a shielded horizontal opening that directs attention toward the surface below. Its low, integrated position makes it visually quieter than a freestanding path fixture. The design is especially compatible with concrete steps, masonry terraces, garden walls, and minimalist exteriors where the lighting should support the architecture rather than become a separate decorative object.

Unlike a lantern or projecting sconce, a recessed outdoor brick light occupies very little visual space in daylight. The faceplate becomes part of the stair riser or wall plane, and the illuminated aperture becomes prominent only after dark. On pale concrete or gray stone, the black-looking frame creates a measured contrast. On charcoal brick or dark cladding, the border may recede, leaving the horizontal light line as the main visible feature.

As part of a broader outdoor wall lighting plan, this format handles a different job from door-side sconces. Wall-mounted entrance lights identify the doorway and illuminate faces, while low brick lights concentrate on elevation changes and nearby ground. Keeping those functions distinct usually produces a calmer exterior than making one bright fixture serve every purpose.

Where Do Outdoor Brick Lights Work Best?

Outdoor brick lights work best where a solid vertical surface borders a walking route and a low, shielded source can reveal the ground. Strong applications include garden stairs, retaining walls, porch approaches, patio transitions, raised planters, and hospitality terraces. They are most effective when the installation follows the architecture consistently and when other fixtures provide broader area, entrance, or landscape illumination at appropriate heights.

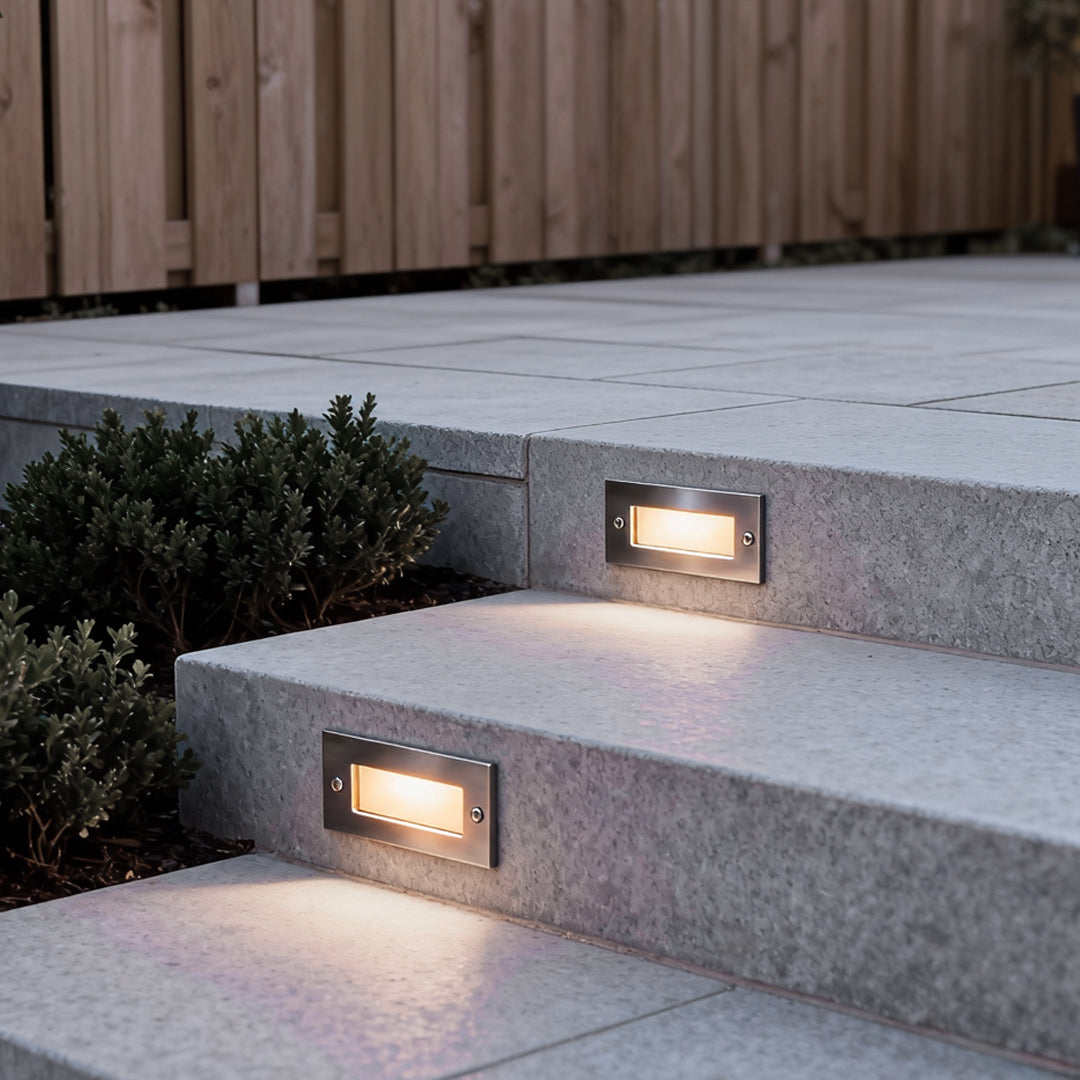

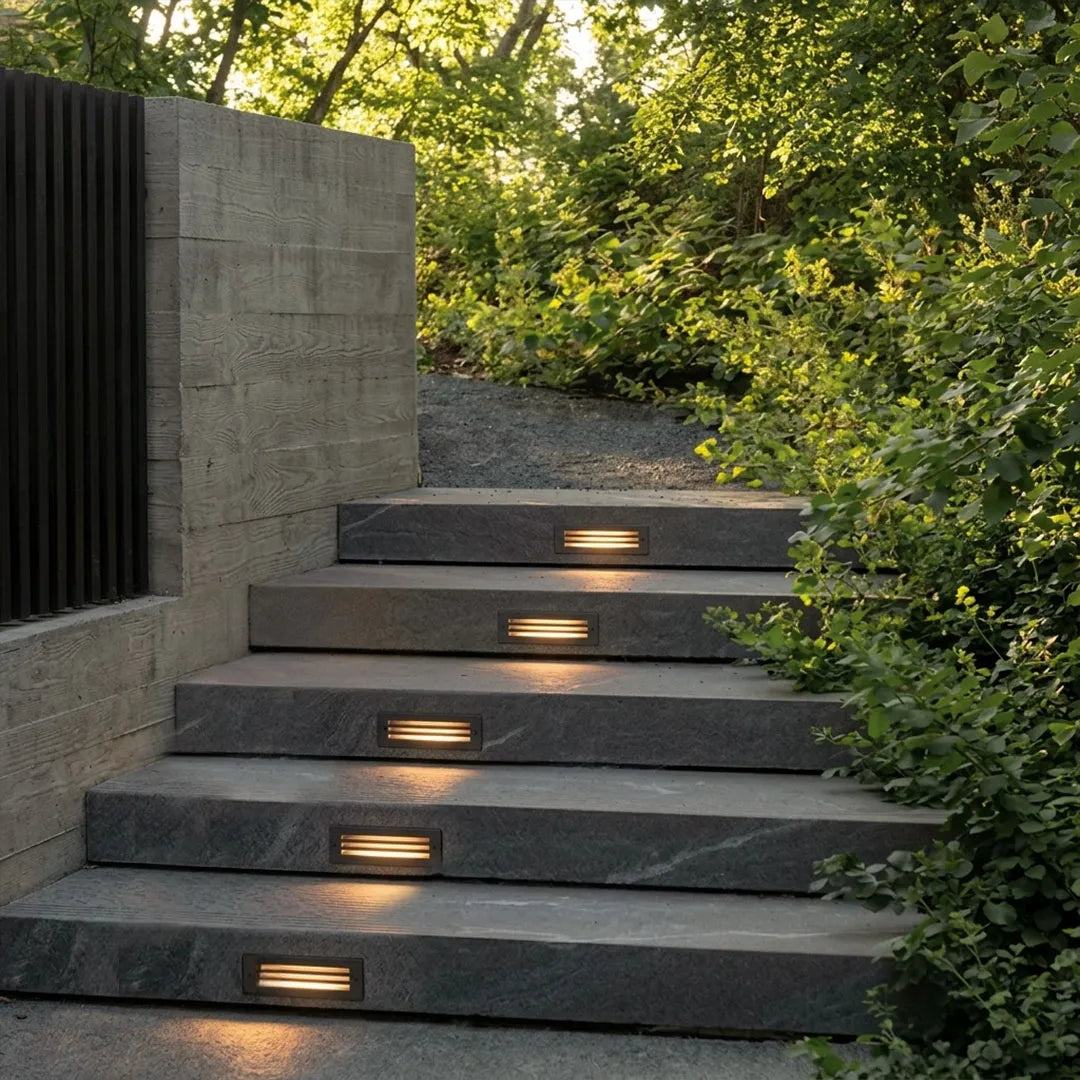

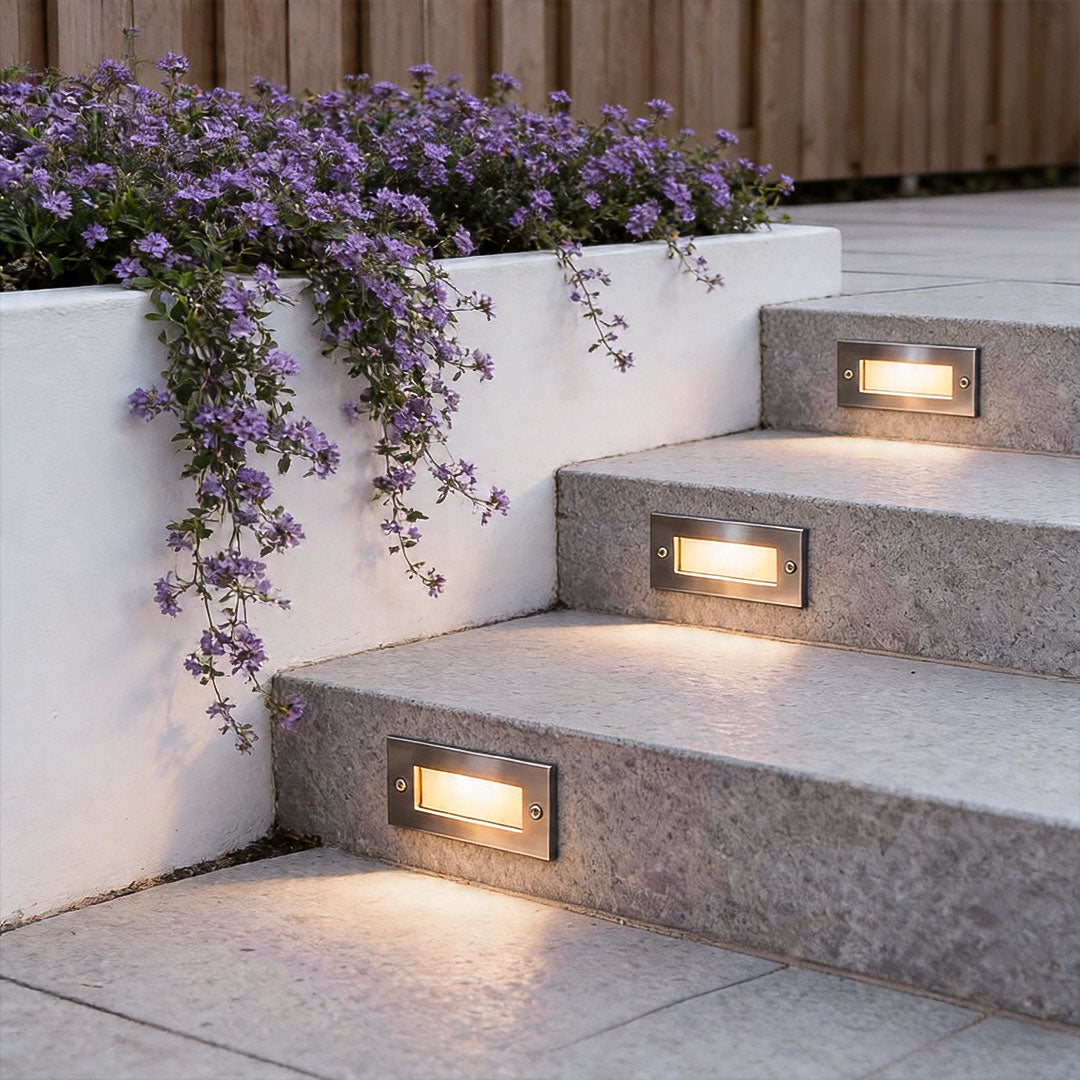

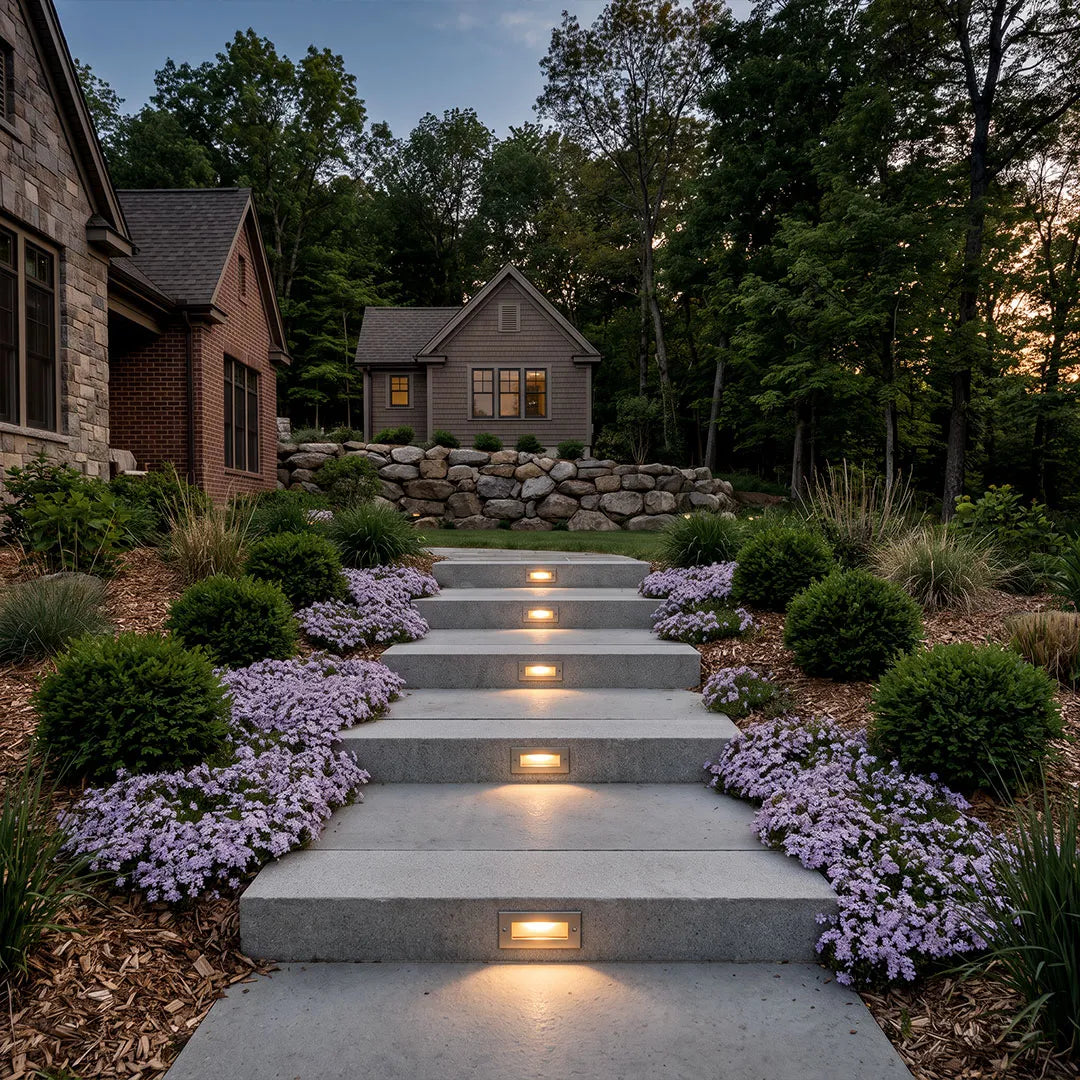

Garden stairs at a private home. The planted residential setting in the images is a natural application for recessed garden wall lights. The fixtures sit below the flowers and fence line, so they do not compete with planting during the day. At night, each pool of light clarifies a tread while the upper portion of the garden remains visually quiet. If the route continues away from the stairs, path lights can carry guidance through the beds without asking the brick lights to illuminate the entire walkway.

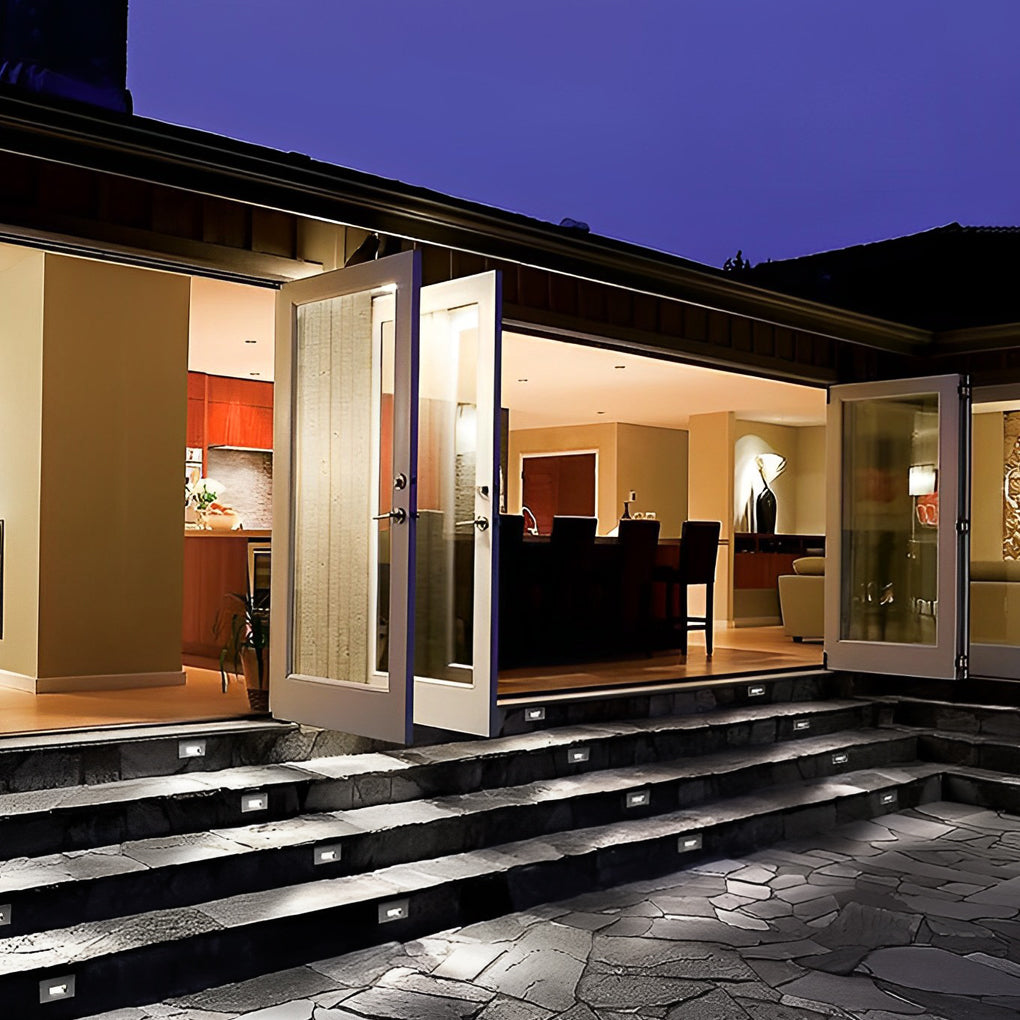

Front steps and porch approaches. An exterior brick wall light can be useful near a front entry when the approach includes one or more changes in level. Low fixtures help define the steps, while outdoor porch lighting can provide identity and useful illumination at the door. Coordinate the apparent light color and brightness, but avoid making the two layers identical; the entry source and the stair source have different visual targets.

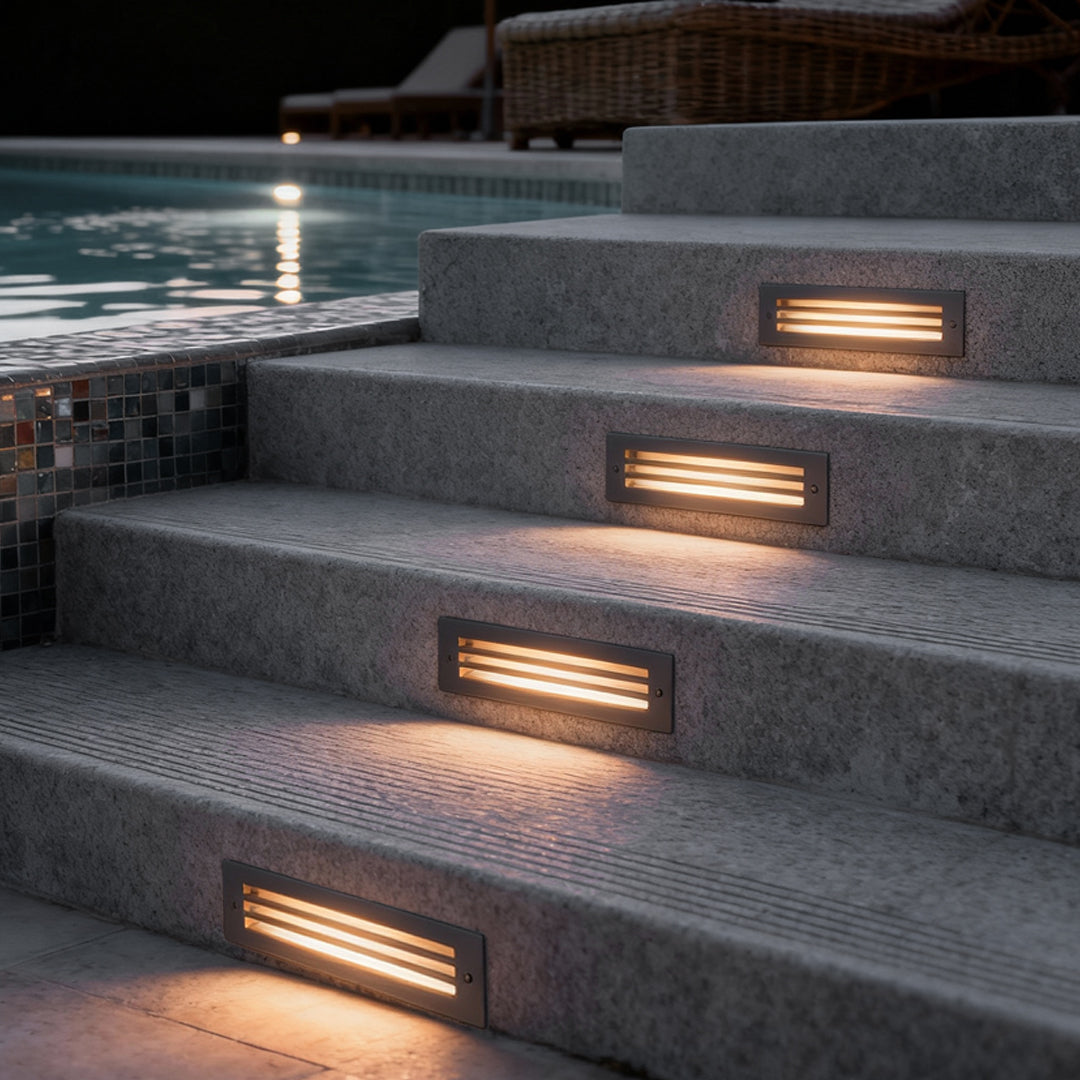

Pool terraces and water-adjacent stairs. The poolside image shows how a long, low light can preserve open views across a terrace. Yet proximity to water raises requirements that cannot be judged from a rendering. Poolside step lighting must be evaluated for the exact wet environment, electrical separation, corrosion exposure, location relative to the water, and applicable local requirements. Do not treat a general outdoor rating as automatic approval for every pool zone.

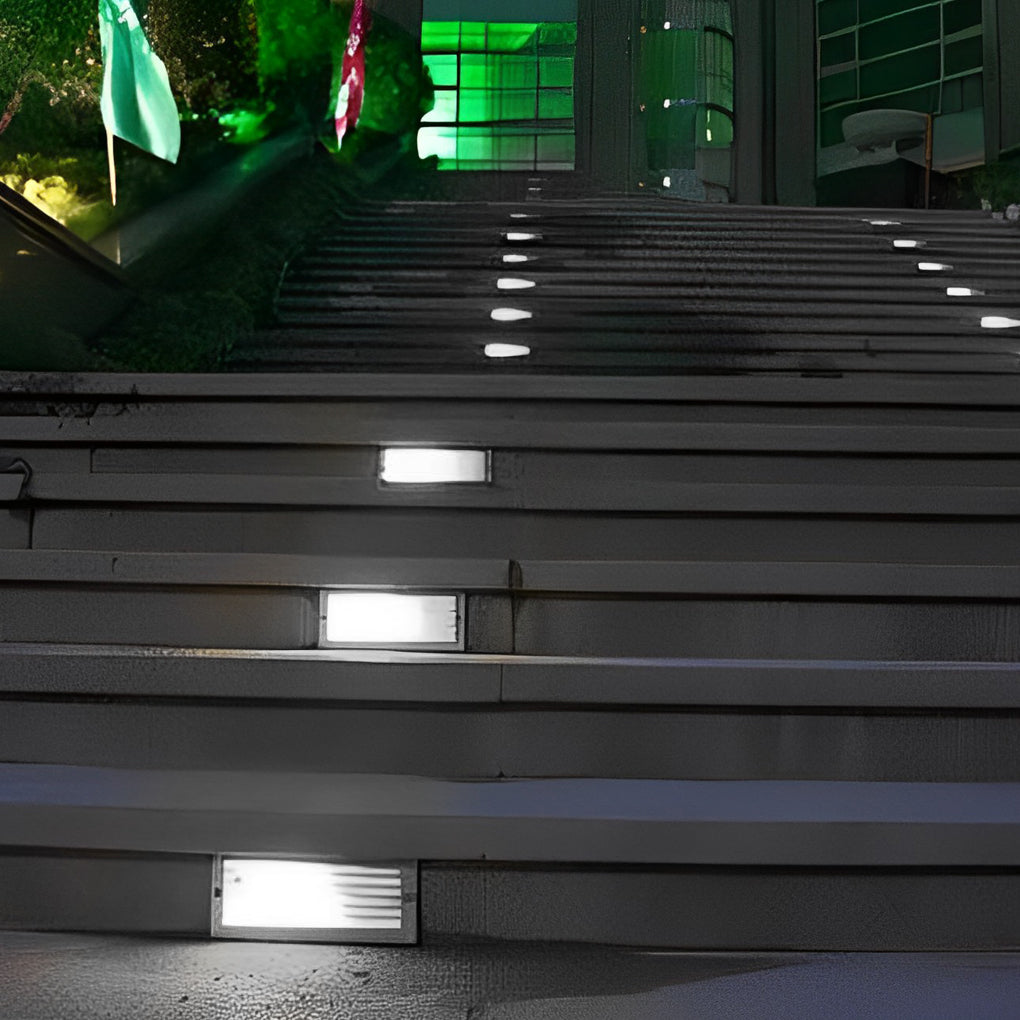

Boutique hotels, restaurants, and outdoor lounges. Commercial walkway lighting needs to remain comfortable for guests who may be seated nearby, and a shielded masonry light can keep the apparent source below eye level. On a restaurant terrace, it can mark a short stair without adding a pole beside the seating layout. The project team still needs to verify required illumination, emergency or egress obligations, accessibility conditions, control schedules, and maintenance access for the actual property.

Custom homes and multi-unit construction. Repeated brick light installation in concrete is easiest to coordinate before walls and stairs are poured or finished. The architect, landscape designer, electrical contractor, and hardscape installer can agree on faceplate alignment, rough-in openings, wiring routes, drainage, and service access. On a multi-unit project, a full nighttime mockup of one stair is more valuable than discovering glare or irregular spacing after dozens of housings have been embedded.

How Should You Position Brick Lights on Stair Risers and Walls?

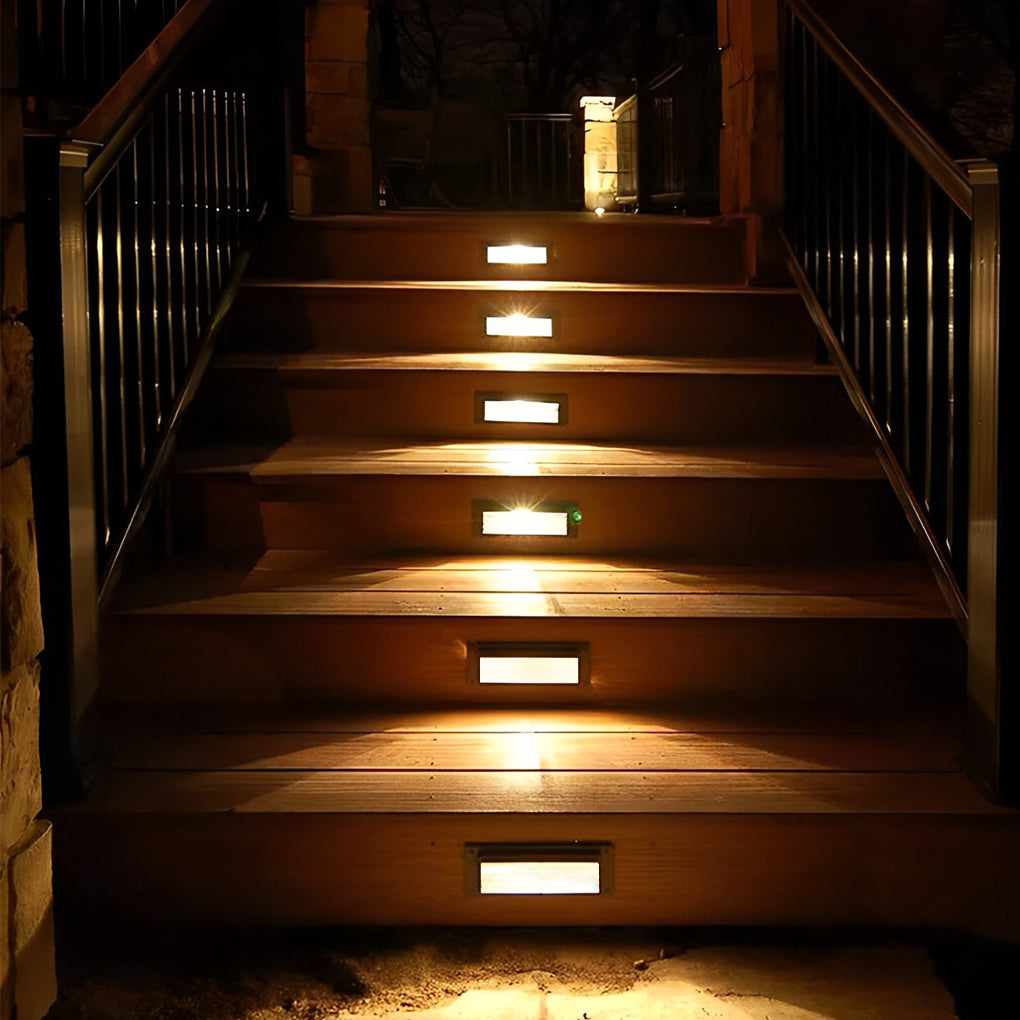

Position brick lights according to the tread edges, landings, turns, and the fixture's real beam distribution rather than applying an automatic one-light-per-step rule. A centered fixture can create a formal rhythm on narrow stairs, while side placement may feel quieter on a broad run. The best layout makes every change in level readable from both directions without presenting a bright aperture directly to approaching eyes.

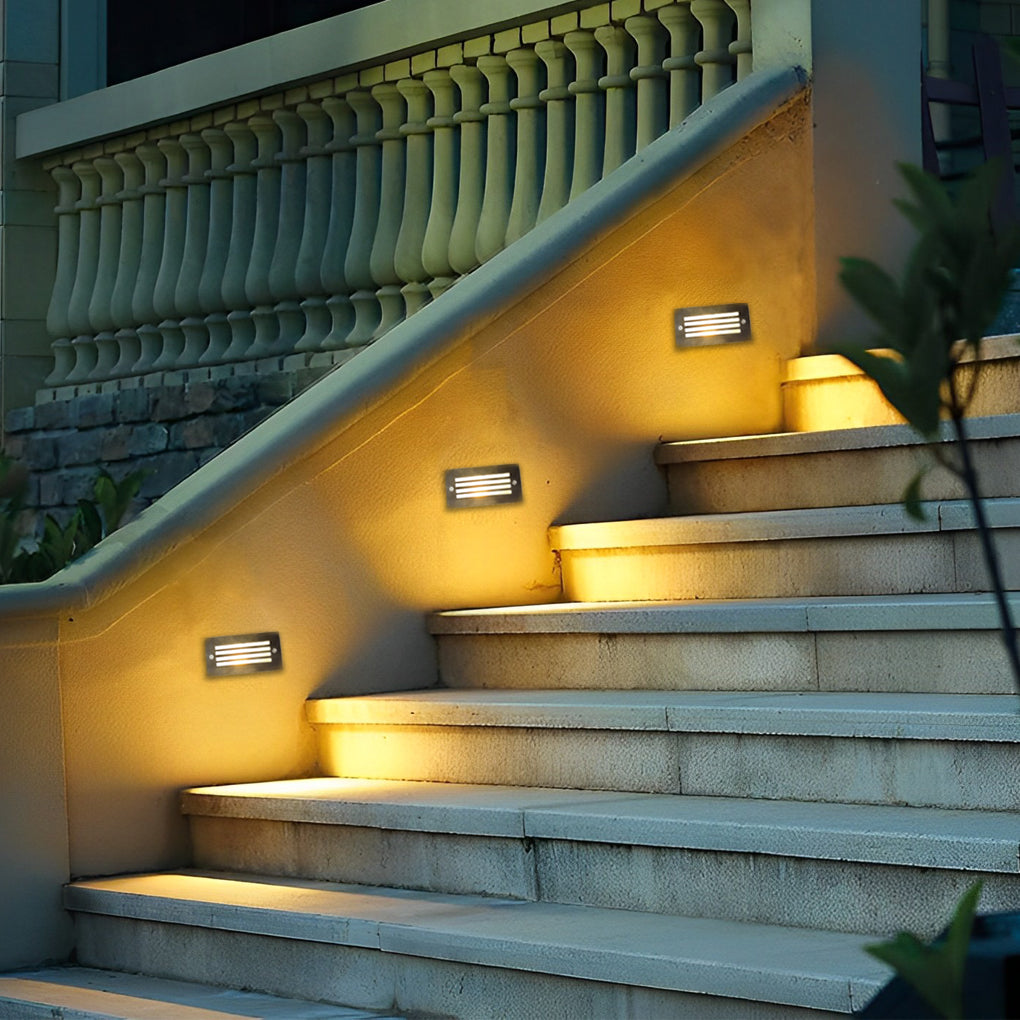

Mounting height should be assessed relative to the walking surface and the shape of the cutoff. A fixture located too high can expose more of the source and cast light farther than intended. One placed very low may be vulnerable to dirt, splash, impact, snow, or maintenance equipment and may not reveal enough of the tread. Use the manufacturer's required orientation and mounting range when provided, then review the position from a standing viewpoint at both the top and bottom.

Surface color changes perceived coverage. Pale concrete in the images reflects the warm-looking light and makes the pools appear broader. Dark brick, rough stone, or wet pavement may absorb more light and reduce apparent brightness. Glossy tile can create distracting reflections even when the fixture itself is shielded. A nighttime mockup using the actual finish is therefore more reliable than choosing masonry step lighting from catalog imagery alone.

Where a long path begins after the last step, taller modern path lights may establish a more continuous route. Keep their spacing and brightness related to the stair sequence, but do not force a single grid across two different fixture types. The objective is a legible transition, not identical points of light.

How Do Light Direction and Glare Affect Step Visibility?

A brick light should reveal the walking surface while keeping the brightest source outside normal lines of sight. Downward or shielded distribution can emphasize tread edges, reduce direct glare, and preserve a comfortable dark-sky feel near seating areas. Good visibility depends on contrast and continuity, not simply maximum brightness, so the design should be checked from both travel directions and under the surrounding nighttime conditions.

A visible horizontal aperture is part of this product's design language. If it sits near eye level for someone approaching from below, however, the bright line could become distracting. Check the light from a child's height, a seated position near a terrace, and the standing viewpoints at both ends of the stairs. The louvered appearance may help with cutoff, but only real optical data or a sample can confirm performance.

Low-level fixtures should be one layer within the larger outdoor lighting plan. Brick lights can describe elevation changes; entrance lights can support arrival and recognition; tree or planting lights can establish depth; and area lighting can address gathering zones. Separate control zones, when supported by the selected system, allow each layer to be tuned without overdriving the step fixtures.

Other recessed options create different effects. Well lights send light from the ground toward planting or architecture and require their own drainage, aiming, and load considerations. Brick lights mount in a vertical plane and generally address the surface below. Choosing between them should begin with the target surface and mounting assembly, not with the fact that both can appear visually recessed.

If the intent is an uninterrupted line beneath every stair nosing, outdoor LED strip lights offer a different strategy. A strip emphasizes the full width and continuity of each step, while rectangular brick lights create measured pools and a repeated architectural rhythm. Compare channel requirements, power-supply access, drainage, replaceability, daytime appearance, and glare before selecting the effect.

What Must Be Planned Before Embedding a Light in Masonry?

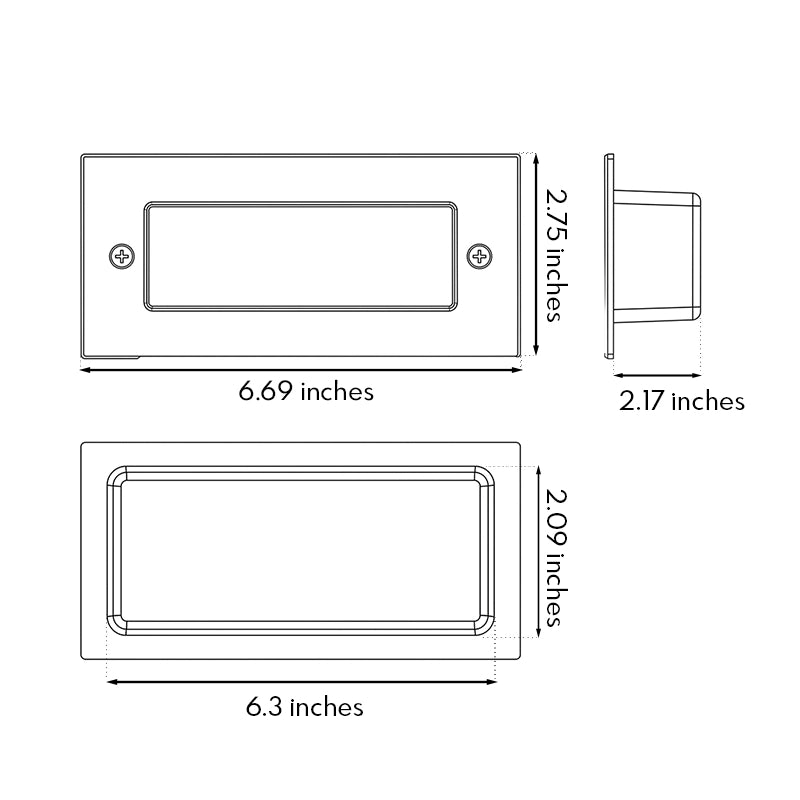

Before embedding a light in brick or concrete, confirm the faceplate and housing dimensions, cutout, required mounting box or sleeve, cavity depth, wiring method, voltage, driver location, drainage, sealing, service access, and listed environmental suitability. These decisions must be coordinated before masonry is closed. A small visible face does not guarantee a shallow body, and a clean installation depends on the hidden assembly as much as the front plate.

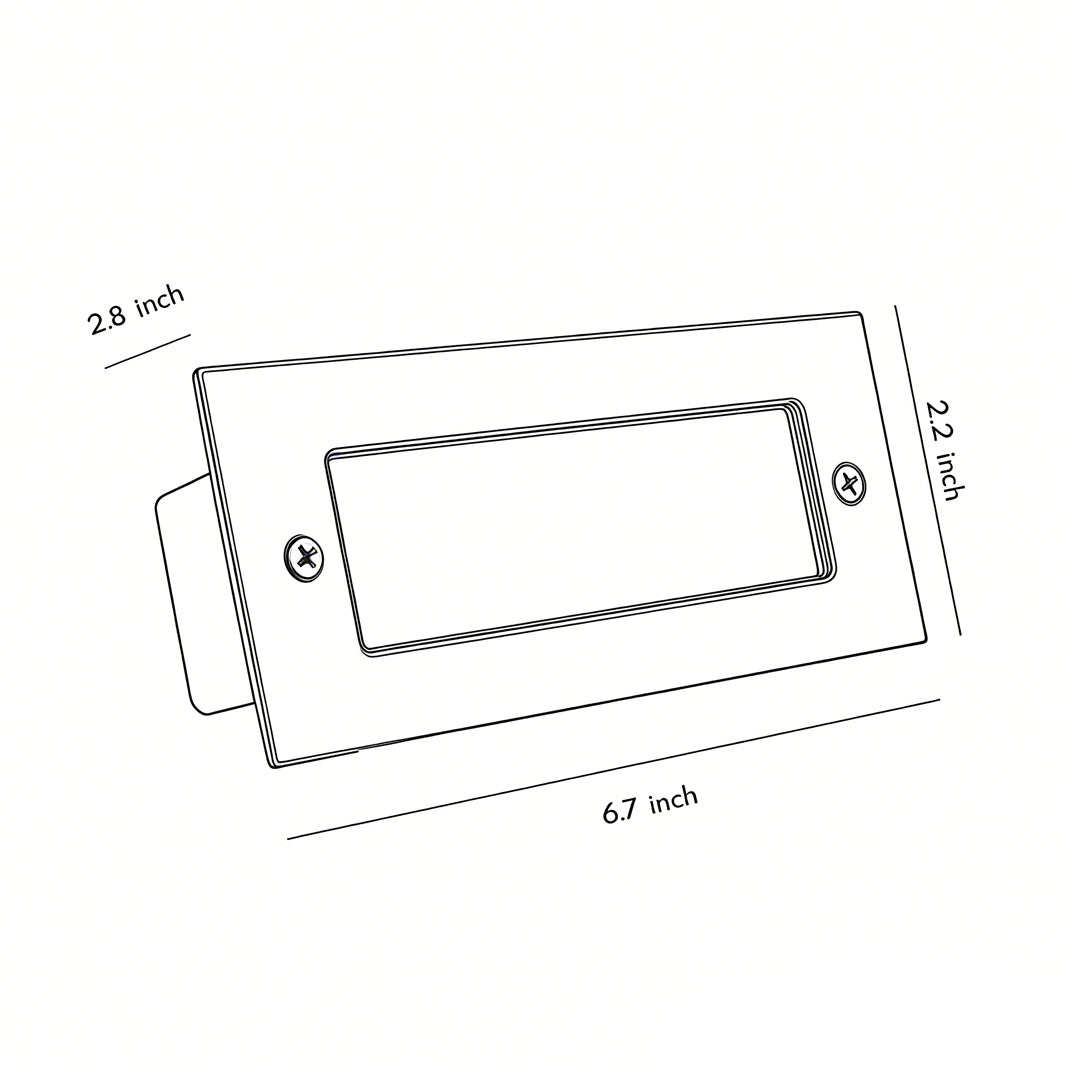

Obtain the rough-in drawing early. The finished faceplate shown in a product image tells the mason very little about the opening behind it. Ask for the complete installation instructions and dimensions, including any box, clips, conduit entries, clearances, and orientation marks. For cast concrete, a coordinated blockout may be needed before the pour. For brick or concrete masonry units, the bond pattern and cavity should be planned so the opening does not become an improvised site cut.

Protect the wall's water-management strategy. Exterior masonry is exposed to rain, irrigation, cleaning water, and moisture movement. The fixture opening should not create an uncontrolled path into the wall or trap water around electrical components. Follow the manufacturer's sealing, gasket, drainage, and mounting instructions, and coordinate them with the wall's flashing, membrane, weeps, or other project-specific details. Do not add sealant casually in a way that blocks intended drainage or future servicing.

Confirm environmental suitability for the exact exposure. A covered garden wall, an uncovered stair, a coastal terrace, a snow-prone entry, and a poolside riser do not present the same conditions. Review the listed outdoor or wet-location suitability, IP information if provided, operating limitations, finish care, and corrosion guidance. The visual scenes cannot confirm that this product is approved for salt air, direct water jets, submersion, freeze-thaw exposure, or installation within a regulated pool area.

Coordinate power and access. Do not assume this is a low-voltage brick light simply because the fixture is small. Confirm input voltage, transformer or driver requirements, maximum run lengths, cable type, compatible controls, and where serviceable components may be located. Long low-voltage runs can introduce system design considerations that need to be addressed before hardscape is finished. A qualified installer should apply the product instructions and relevant local requirements to the actual project.

Plan for maintenance. Low fixtures collect splash residue, soil, leaves, insects, and mineral deposits. Verify whether the front can be removed without damaging the surrounding masonry, how the light source or driver is serviced, and which cleaning methods are compatible with the listed finish and lens. On hospitality or multi-unit projects, keep a record of the product, location, circuit, driver, finish, and spare components so repeated installations remain manageable.

A conventional broad wall treatment may be preferable when the design goal is to reveal an entire facade rather than the ground. In that case, compare the brick light with wall wash lighting. Wall washers distribute illumination across a larger vertical surface; embedded step fixtures punctuate a route. They solve different visual problems and may be used together if their brightness and aiming are carefully balanced.

Is This Outdoor Brick Light Right for Your Project?

This outdoor brick light is a strong fit for projects that want discreet, low-level illumination integrated into modern masonry, especially concrete stairs, garden walls, terrace transitions, and restrained hospitality landscapes. It is less suitable when no vertical cavity is available, when future access would require damaging finished construction, or when one small fixture is expected to provide broad area lighting or prove code compliance by itself.

Before ordering, record the number and dimensions of risers, wall thickness or cavity depth, intended mounting height, distance between proposed fixtures, route to the electrical supply, and access to any driver or transformer. Confirm the faceplate dimensions separately from the body and rough-in opening. Also note nearby irrigation, drainage paths, snow storage, cleaning equipment, planting growth, and possible physical impact so the chosen location remains practical after construction.

The order checklist should include actual light output and distribution, color temperature, voltage, control compatibility, environmental rating, required box or housing, included components, mounting orientation, service method, finish care, and applicable certification information. For a large installation, order or obtain one sample and build a representative nighttime mockup with the real stair surface. Review the result from every common approach before approving the remaining locations.

This product should not be treated as the sole answer for a safety-sensitive stair until its documented performance is assessed in the complete setting. Broader ambient light, entry lighting, handrail illumination, or another layer may still be needed. The responsible design is the one that keeps tread edges legible, glare controlled, maintenance possible, and the electrical and masonry assemblies consistent with the manufacturer's instructions and local project requirements.

Frequently Asked Questions About Outdoor Brick Lights

What is an outdoor brick light?

An outdoor brick light is a compact fixture intended to be mounted within or closely integrated into a vertical masonry-type surface, often near steps, paths, terraces, or low walls. The name describes the architectural format rather than limiting the product to red brick. Depending on its listed installation method, a brick light may be used in brick, block, concrete, or another compatible assembly. Always confirm the required housing, cutout, wall depth, voltage, orientation, and environmental rating for the specific model before planning the opening.

Can brick lights be installed in concrete steps or stone walls?

They can be considered for concrete steps or stone-faced walls only when the selected fixture and wall assembly support that mounting method. Concrete may require a planned blockout or sleeve before pouring, while stone veneer may conceal a framed or masonry backing that changes the available depth and water management. Do not size the cavity from the visible faceplate. Obtain the rough-in drawing, coordinate wiring and drainage, protect the wall membrane, and verify how the unit can be removed for future service without damaging the finished surface.

How many outdoor brick lights do I need on a staircase?

There is no dependable rule that every riser needs a light. Quantity depends on stair width, riser and tread dimensions, fixture output, beam spread, surface color, landings, turns, surrounding illumination, and the required visual conditions. Begin with the first and last step plus any landing or change in direction, then evaluate the gaps. A nighttime mockup with the selected fixture is the best way to judge rhythm and visibility. Review the layout from the top and bottom rather than from only one approach.

How high should a brick light be mounted above a step?

The correct height depends on the fixture's required orientation, optical cutoff, and the relationship between the mounting wall and tread below. The goal is to place useful light on the walking surface without exposing the bright aperture to normal sightlines or locating the face where it will be easily struck. Follow the product instructions rather than applying a universal dimension. Test the proposed height on a sample riser, then view it while ascending, descending, standing on a landing, and sitting in any nearby outdoor seating area.

Are outdoor brick lights waterproof enough for poolside use?

Poolside suitability cannot be assumed from an outdoor appearance or a general waterproof description. A light near a pool may face direct splash, cleaning water, chemical exposure, corrosion, and special electrical location rules. Verify the product's documented rating and approved installation environment, then have the project team check its exact distance and relationship to the water. A fixture that is suitable for an exposed garden stair is not automatically approved for every pool area, and a brick light should never be treated as an underwater fixture unless specifically listed for that purpose.

What color temperature works best for recessed outdoor step lights?

Warm white is often preferred for residential gardens, stone steps, restaurants, and hotel terraces because it feels comfortable near wood, planting, and warm architectural finishes. Designers commonly begin around 2700K to 3000K, then compare samples with the surrounding surfaces and existing exterior lights. That range is a planning reference, not a confirmed specification for this fixture. Check the available color temperature, actual output, and color consistency, and avoid mixing noticeably different whites unless the contrast is intentional within the broader lighting design.

Are these fixtures always low voltage, and can they be dimmed?

No. A compact brick light may be low voltage, line voltage, or connected through a separate driver, and its small size does not reveal the electrical architecture. Dimming also depends on the actual light source, driver, transformer, control method, and manufacturer approval. Review the product data before selecting power equipment or controls. If multiple fixtures will be installed on a long circuit, the installer should also evaluate run length, load, voltage drop where relevant, conductor requirements, and access to serviceable electrical components.

Can outdoor brick lights be added during a renovation?

Retrofit installation is possible in some projects, but it is more disruptive than planning the lights during new construction. Existing brick, concrete, or stone must be investigated for cavity depth, structure, reinforcement, membranes, utilities, drainage paths, and access for wiring. Cutting a neat opening is only one part of the work; the hidden housing and water-management details still need a reliable solution. If the wall cannot be opened safely or serviced later, a surface-mounted step light or another low-level lighting method may be a more practical choice.
