NorthForge Innovation Studio Lighting Case Study

Innovation Studio Lighting for Focus, Collaboration, and Creative Work

Northforge Innovation Studio demonstrates how workplace lighting can become part of a studio’s spatial identity rather than functioning only as general overhead illumination. Teams working across design review, product planning, focused production, and small-group collaboration need different visual conditions during the same day. The office must feel organized enough for concentrated work while remaining flexible and socially connected.

The lighting direction combines architectural cove lighting, recessed downlights, suspended linear office fixtures, round decorative pendants, ring feature pendants, integrated wall lighting, corridor light lines, task-support ambient illumination, and pantry lighting. These layers help distinguish open workstations, social areas, focus booths, collaboration lounges, and circulation without separating every activity behind a solid wall.

This approach is relevant to innovation hubs, product studios, creative agencies, research workplaces, design offices, and technology teams that need more than a conventional corporate fit-out. Light supports daily performance while expressing the experimental, design-led character of the organization.

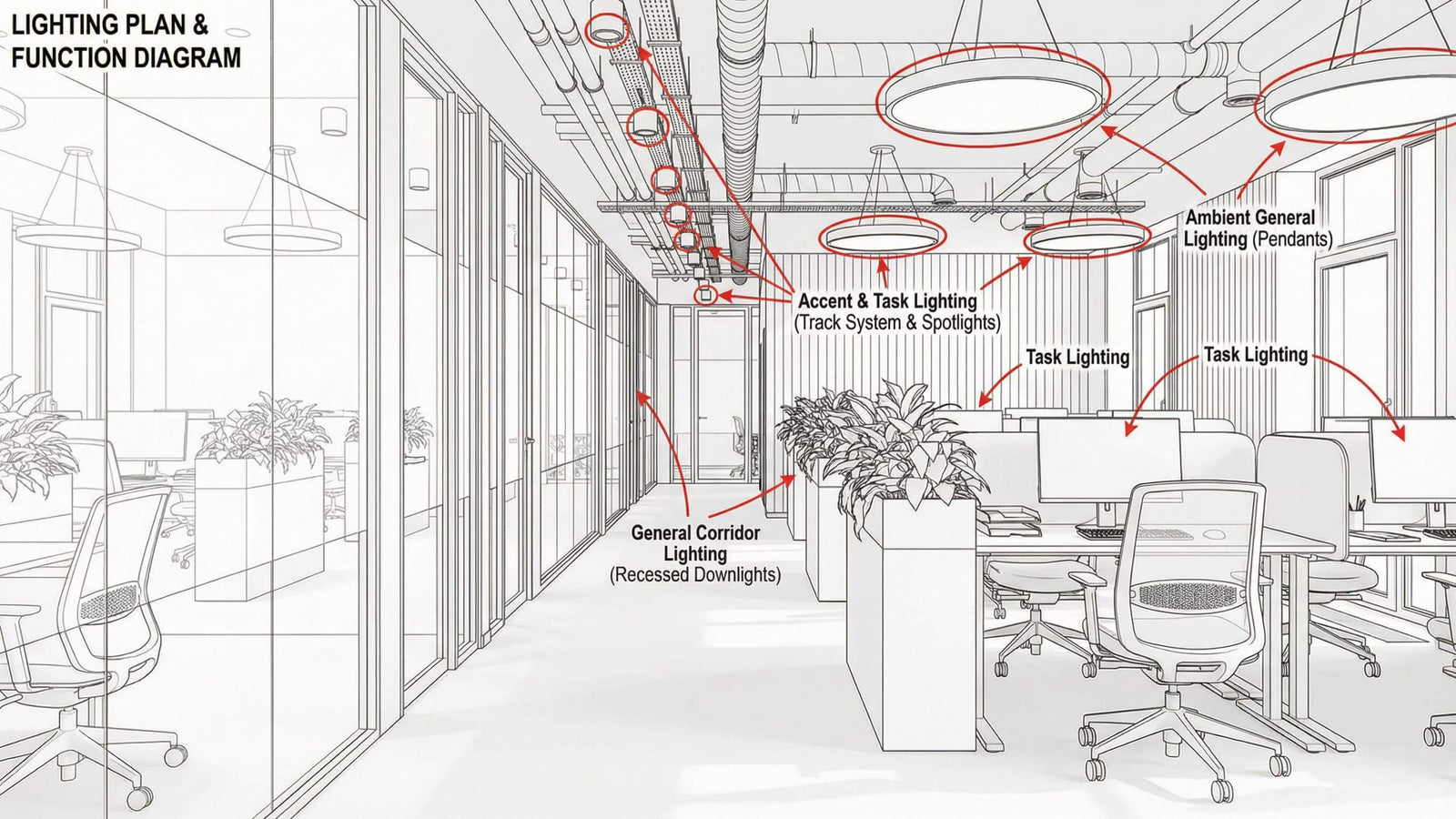

Lighting as a Tool for Behavioral Zoning

Open workplaces often contain several activities within one continuous floor. Furniture can suggest how an area should be used, but lighting reinforces the message. A disciplined linear system above desks signals focused work. Lower pendants above a cafe island encourage short interaction. Softer local light inside a booth supports privacy. A sculptural fixture identifies a collaboration lounge.

These differences create behavioral zones without relying entirely on walls. Employees can recognize where to concentrate, meet, pause, or move. The office remains visually connected, yet each area has an appropriate atmosphere.

The zones should still share a common lighting language. Repeated finishes, compatible color appearance, clean geometric forms, and similar glare control help the workplace feel cohesive. Variation comes through scale, mounting height, distribution, and brightness rather than unrelated fixture styles.

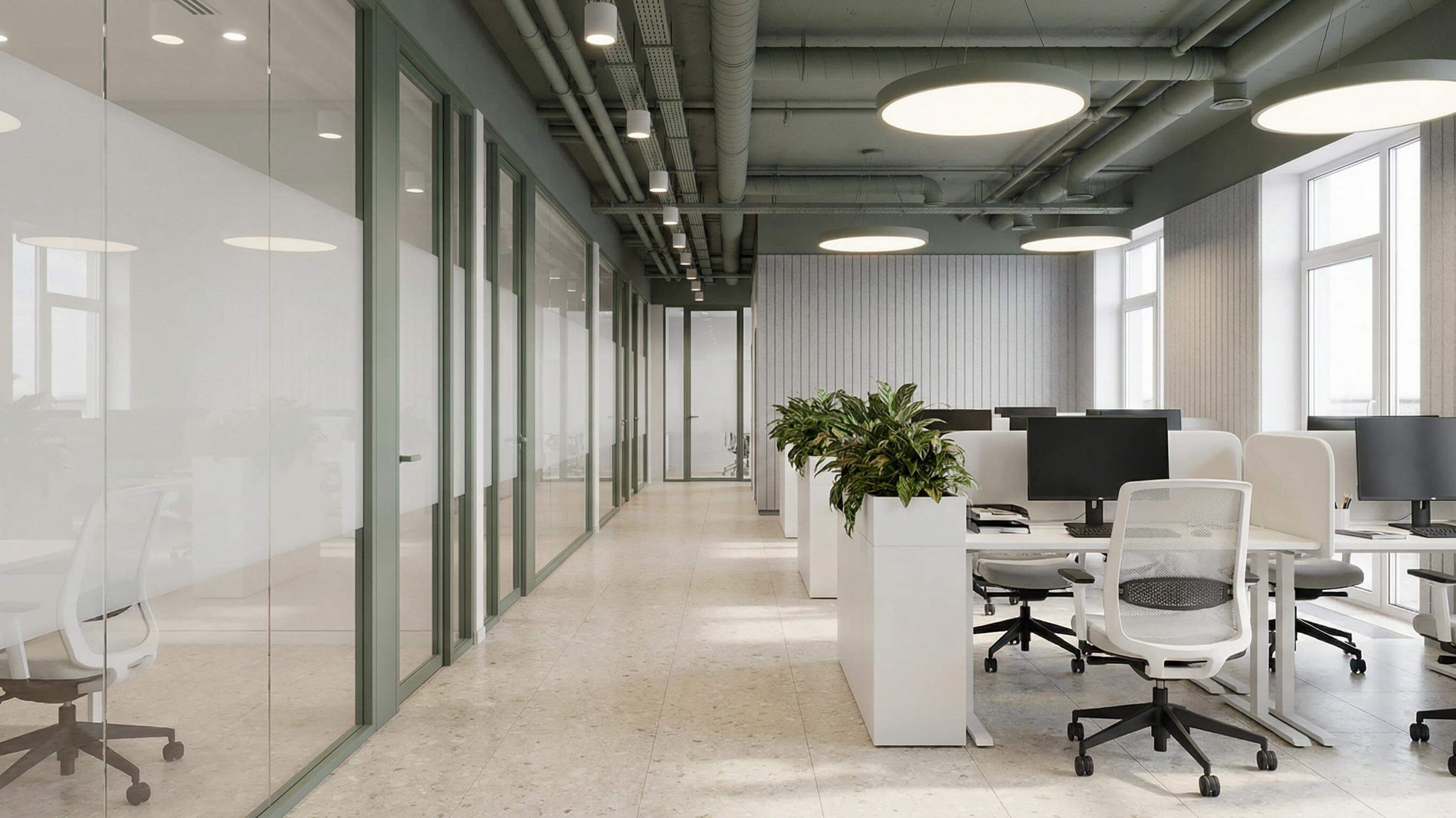

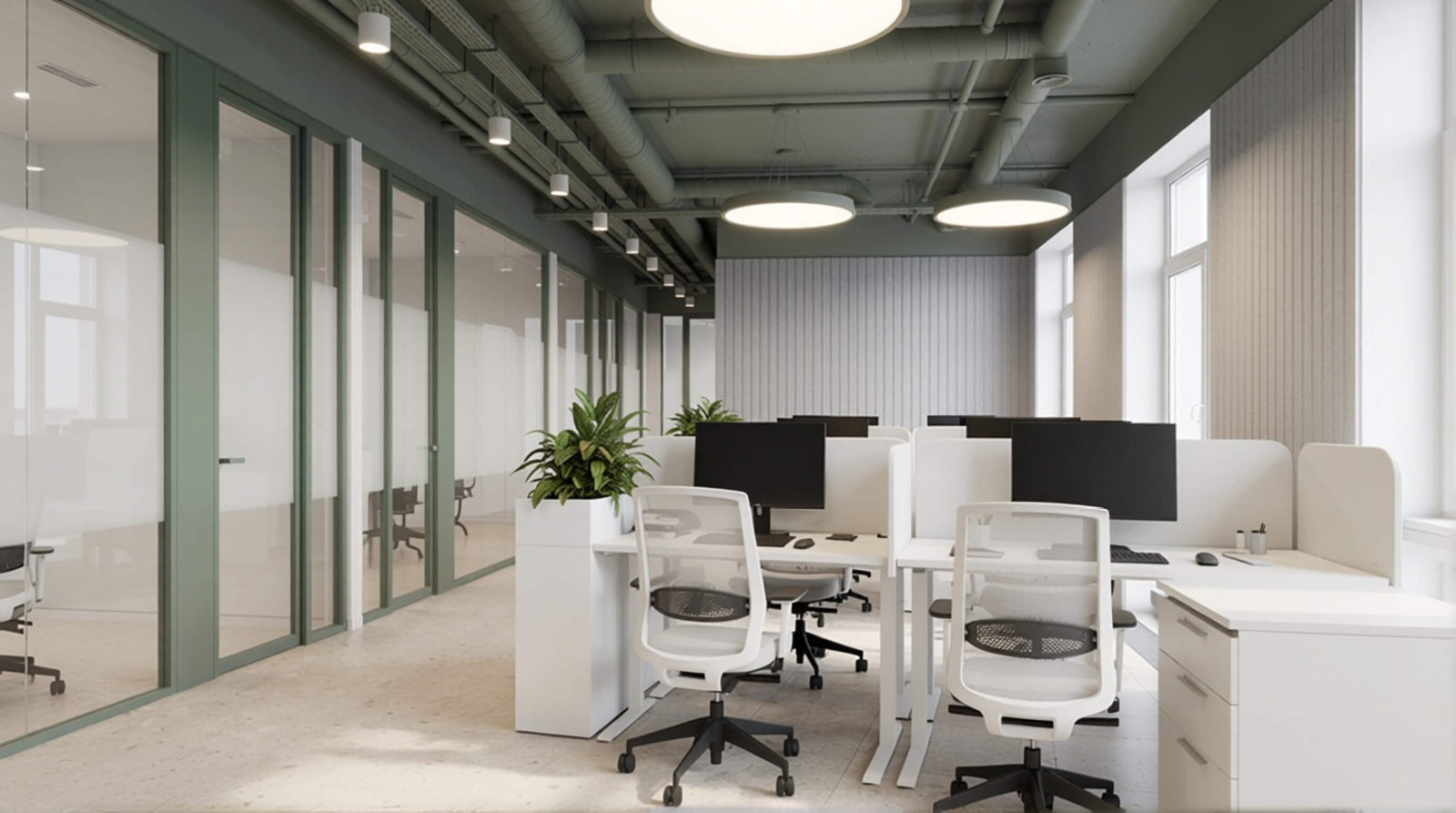

Open Studio Workspace Lighting

The open studio supports sustained desk work, digital production, review, and communication. Its lighting needs to remain stable and comfortable across long working periods. Excessive decorative detail above the workstations could create distraction, so the fixture language is intentionally restrained.

Suspended linear office lights can align with desk groups and architectural ceiling lines. Their long form provides broad coverage and helps organize the open floor. Mounting the source below a high ceiling reduces the distance to the work surface and may improve control over where the light falls.

Diffusion and shielding are important around screens. A bright linear source positioned at an uncomfortable angle may reflect in monitors or remain visible in peripheral vision. Fixture placement should begin with the furniture and typical screen direction rather than a generic ceiling grid.

Supporting recessed architectural lighting can illuminate circulation edges, vertical surfaces, and areas between workstation groups. Bright walls and ceilings reduce contrast with the desks, helping the studio feel open without increasing direct task illumination everywhere.

Daylight and Transparent Internal Glazing

Daylight supports the open character of an innovation studio, but it changes with time, weather, and orientation. Employees near windows may receive abundant natural light while deeper workstations depend more heavily on electric lighting.

Daylight-responsive dimming can reduce output near the facade and maintain stable illumination toward the interior. Separate control zones are more useful than treating the entire studio as one area. Window shades, furniture orientation, and screen placement should be coordinated with the lighting to manage direct sun and reflections.

Transparent internal glazing allows daylight and visual connection to continue between zones. It can also reflect pendants, light lines, and downlights. Fixture positions and brightness should be reviewed after dark from several viewpoints so the glass does not make the ceiling appear unnecessarily busy.

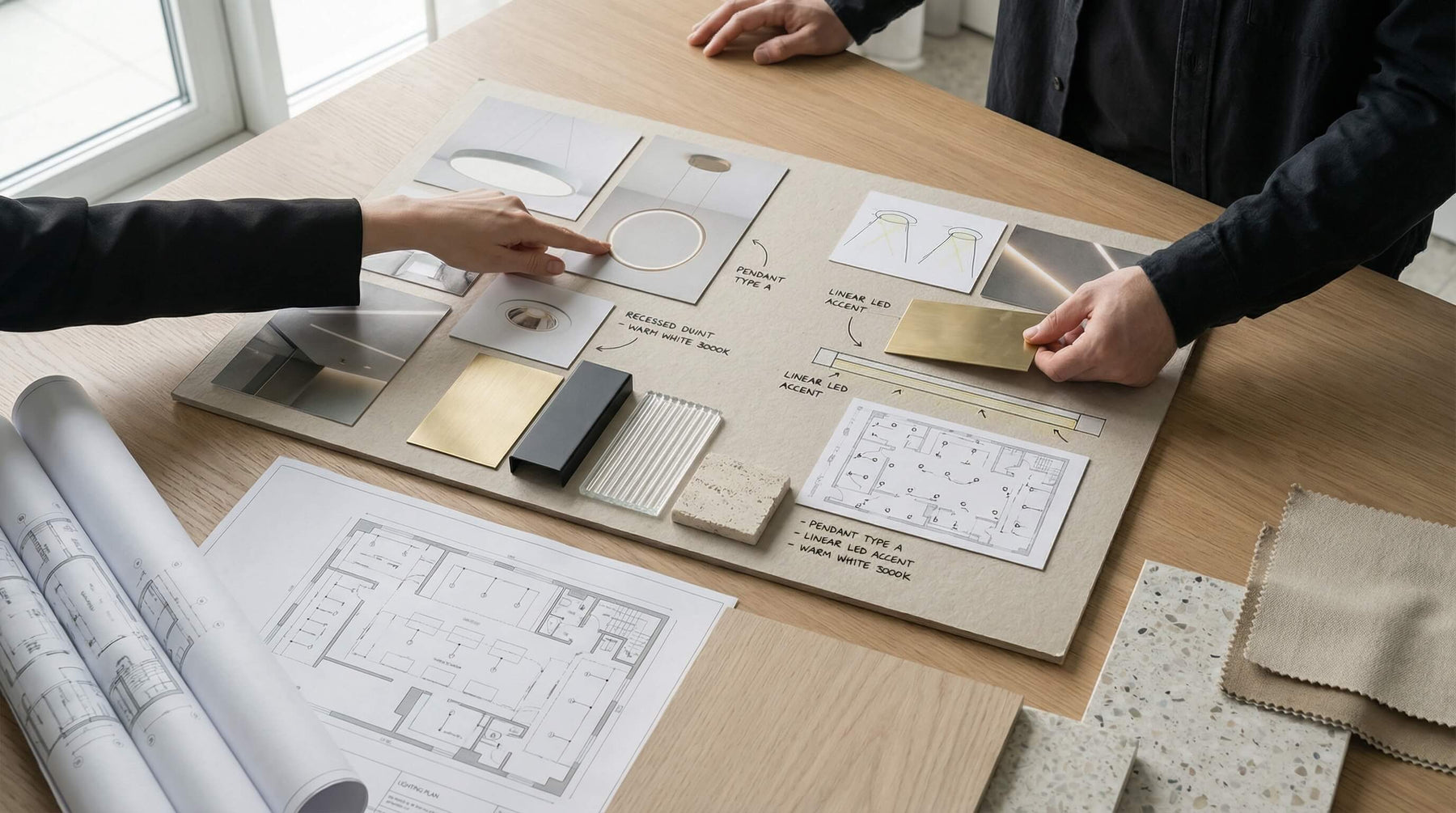

Lighting for Design Review and Product Planning

Innovation teams often move between digital screens, printed drawings, prototypes, material samples, and group discussion. Lighting for review tables needs broad, consistent coverage so several people can examine the same information without casting heavy shadows across the surface.

Linear suspension can follow a long planning table, while adjustable spotlights reveal sample boards or presentation walls. Good color quality helps finishes and materials appear natural. Sources should be controlled around glossy samples and screens so reflected images do not hide important detail.

A review setting may require more illumination than an informal lounge, but it should remain visually connected to the surrounding studio. Separate dimming lets the area support detailed evaluation, presentations, and everyday team discussion without operating at one fixed level.

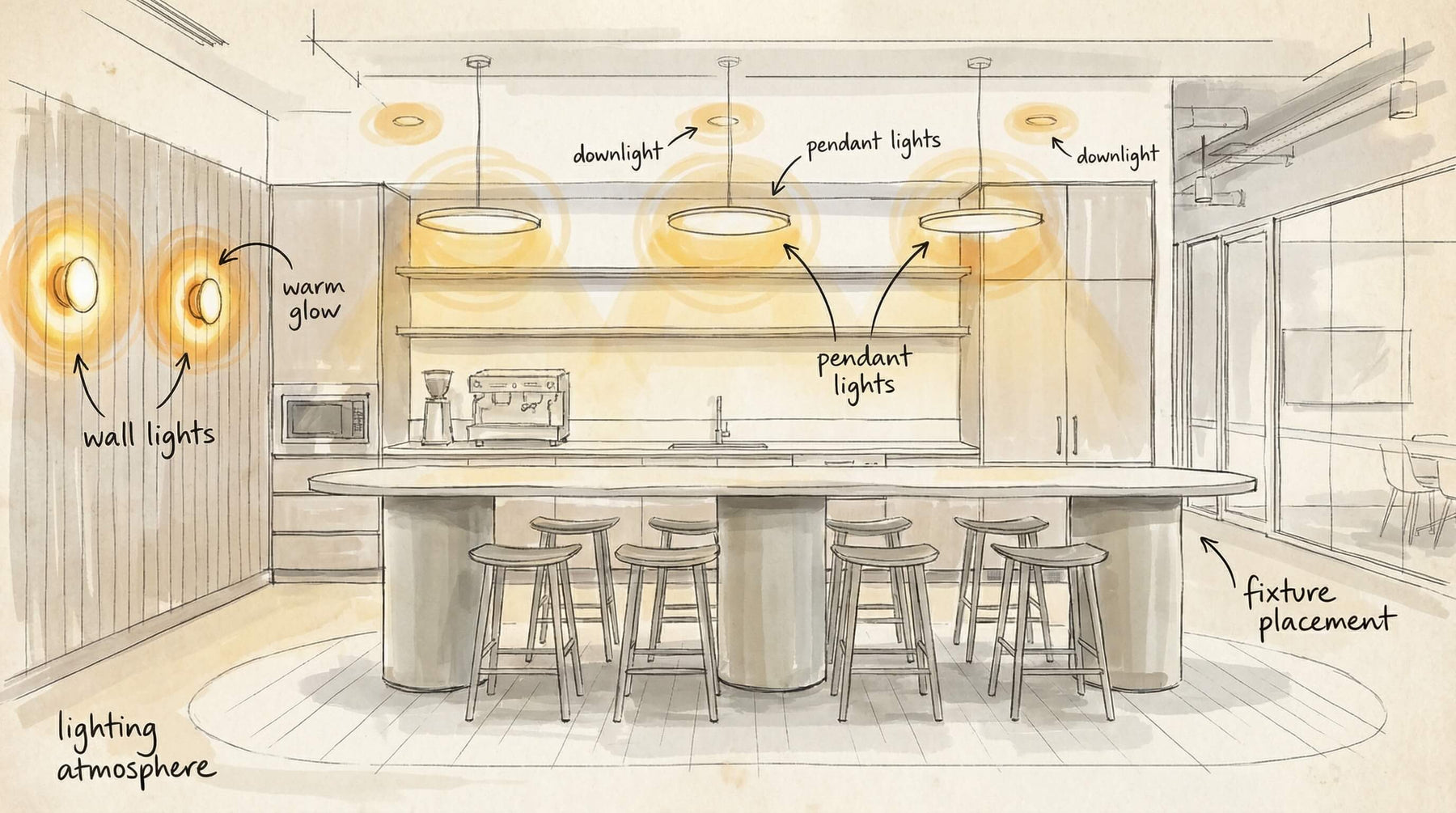

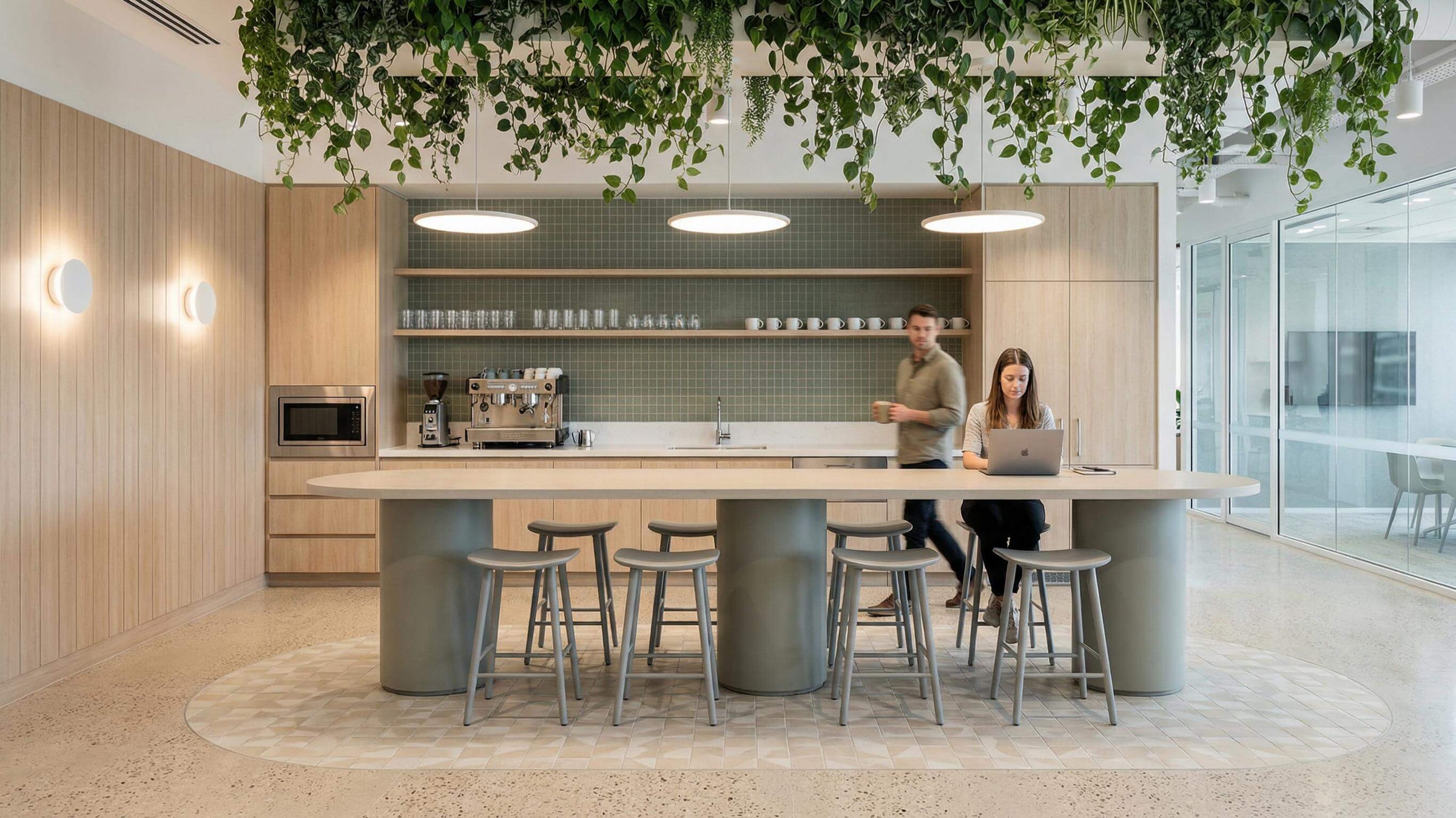

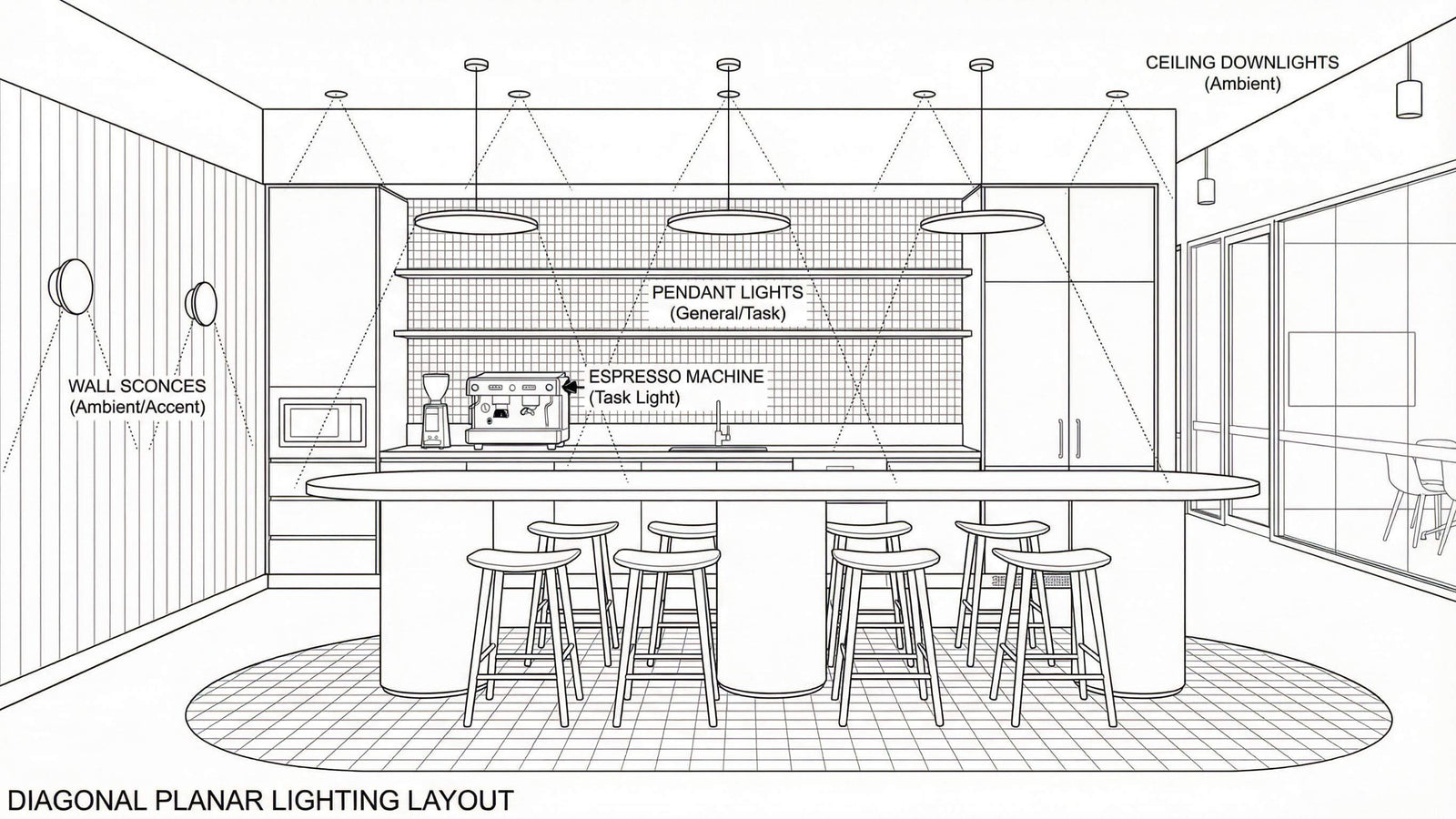

Pantry Café Lighting as a Social Anchor

The pantry cafe is a daily-use social core rather than a hidden break room. It supports coffee, food preparation, short conversations, casual laptop work, and brief pauses between tasks. Lighting helps make the area visible and inviting without turning it into a hospitality venue disconnected from the office.

Round suspended pendants above the island lower the visual scale and establish a central gathering point. Their broad forms soften an exposed or technical ceiling condition. The mounting height should preserve views across the island while controlling glare for seated and standing users.

Integrated wall lights and ambient pantry lighting reveal cabinetry, greenery, and surrounding surfaces. Task illumination is needed at the island, counters, sink, coffee station, and food preparation areas. Under-cabinet lighting can reduce shadows and keep work surfaces clear.

Separate controls allow brighter task light during preparation and cleaning, while pendants and wall lighting can create a calmer setting during informal meetings or breaks. This flexibility helps the pantry support both practical and social use.

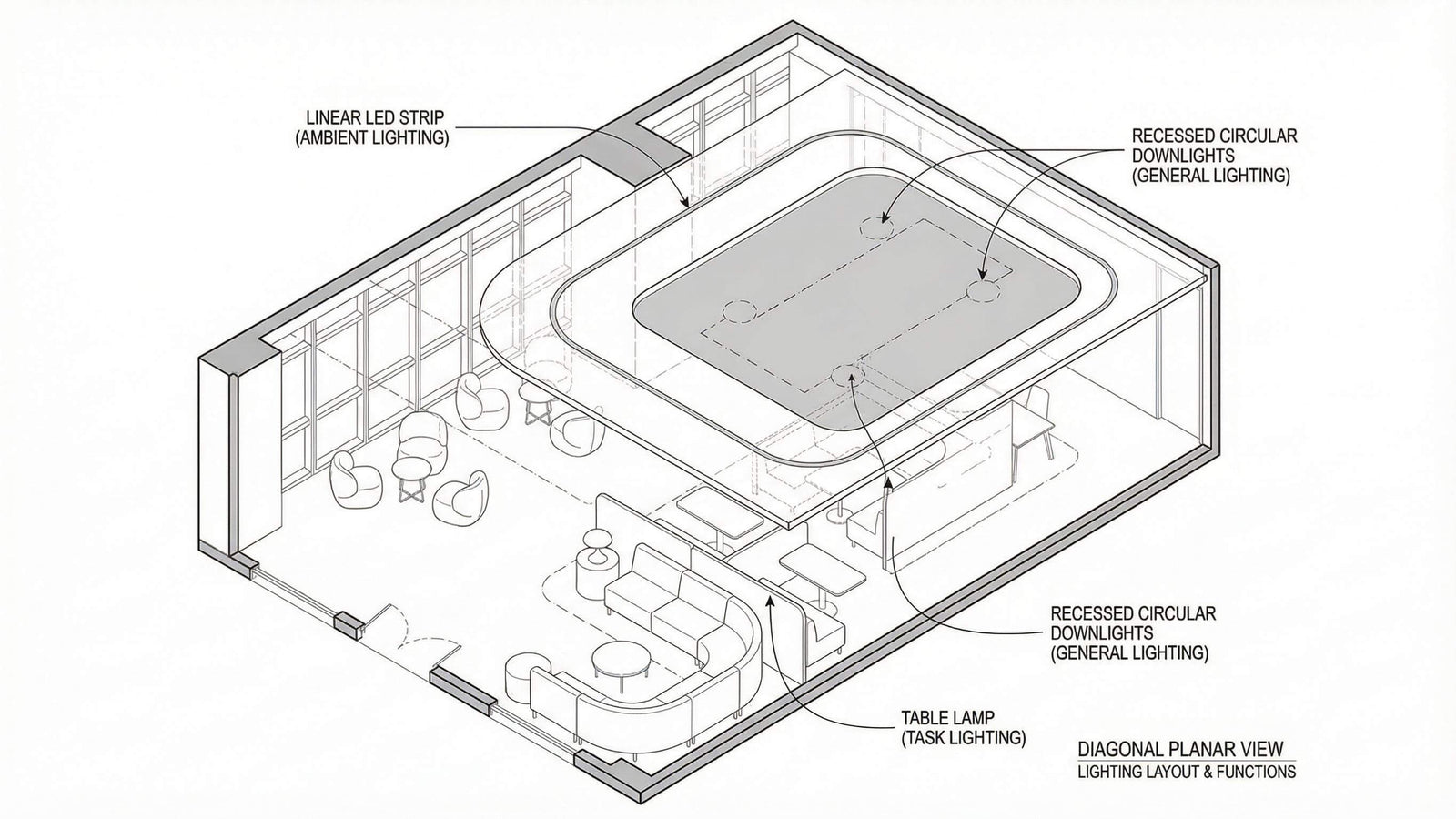

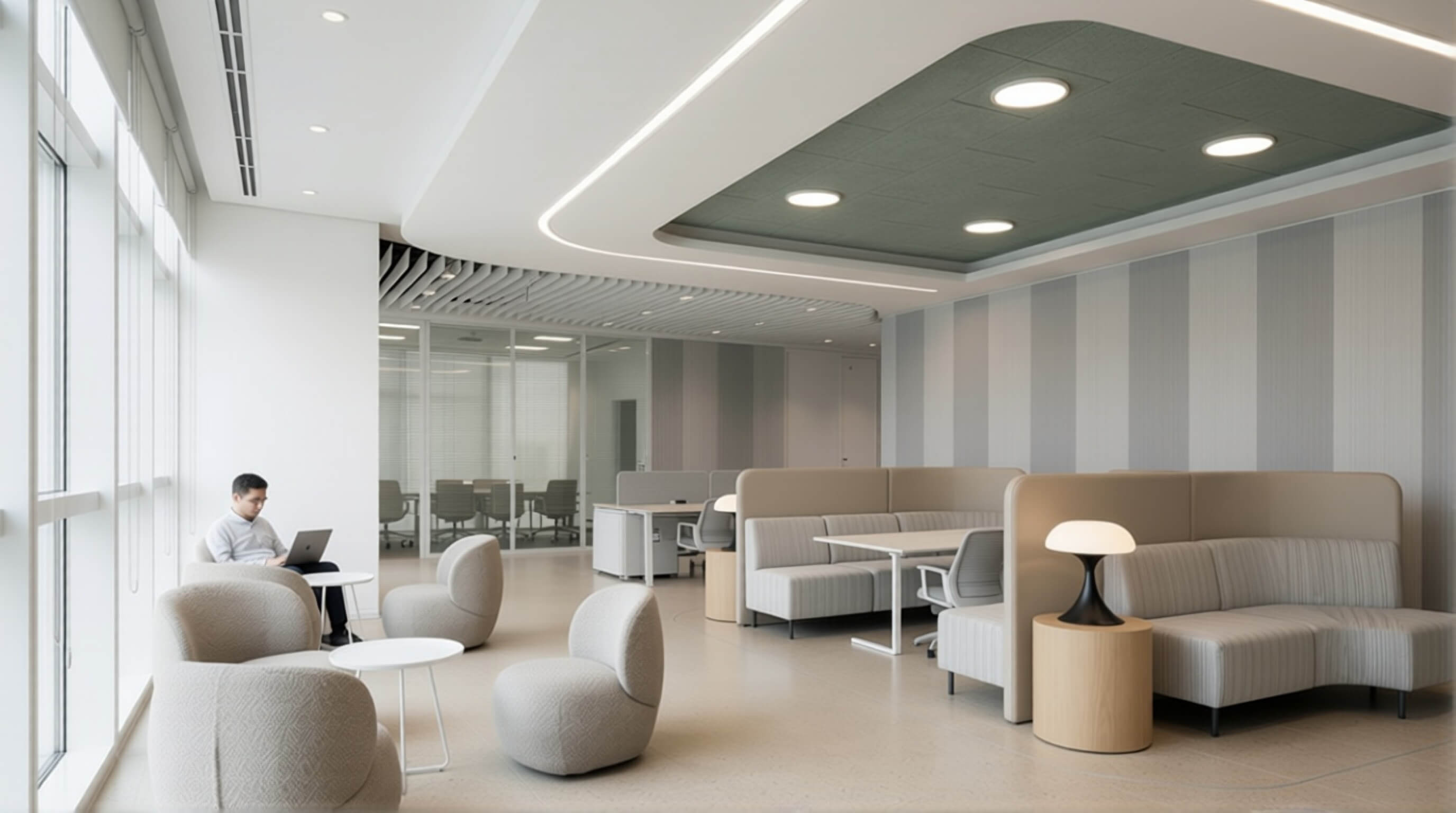

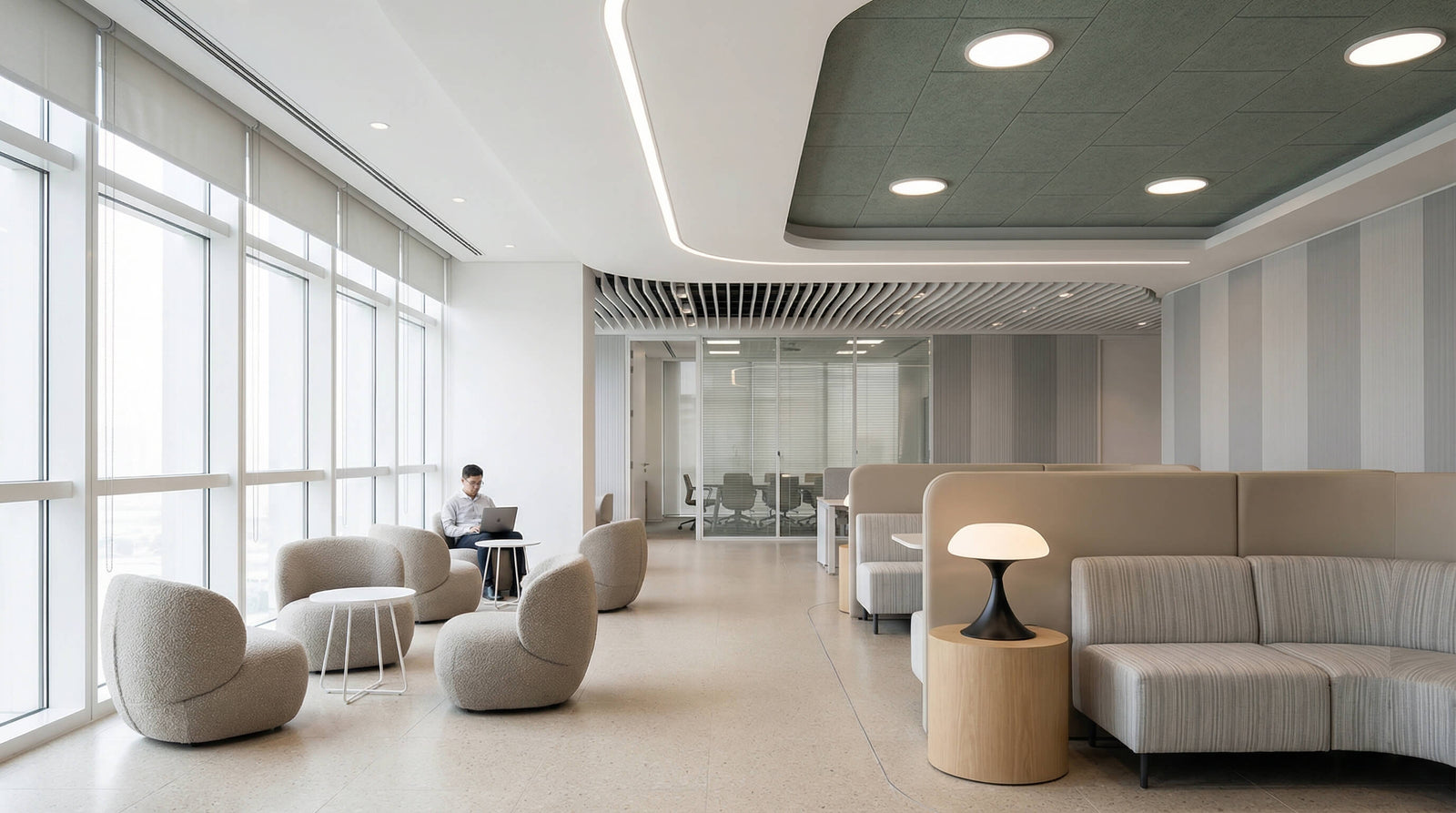

Focus Lounge and Booth Seating Lighting

Focus booths bridge the gap between open seating and enclosed rooms. Upholstered booths and smaller tables offer a contained setting for laptop work, one-on-one conversations, or quieter discussion. Lighting should reinforce privacy without making the area feel isolated.

Integrated cove lighting can shape curved ceiling or wall surfaces and give the booth a defined architectural boundary. Recessed downlights provide controlled general illumination, while localized table lamps bring light closer to the task and allow users to adjust the immediate atmosphere.

Glare needs special attention in a semi-enclosed booth because bright sources may reflect from screens or remain close to seated eye level. Concealed coves, deep shielding, diffused table lamps, and moderate brightness create a more comfortable focus environment.

The light should also support facial visibility for small meetings. A booth that illuminates only the table may leave people’s faces too dark. Soft light on surrounding vertical surfaces can improve communication without sacrificing the contained feeling.

Collaboration Lounge Lighting

The collaboration lounge is intended for quick exchanges, informal problem-solving, and low-pressure team interaction. It needs to feel visibly different from the workstation area while remaining part of the broader studio.

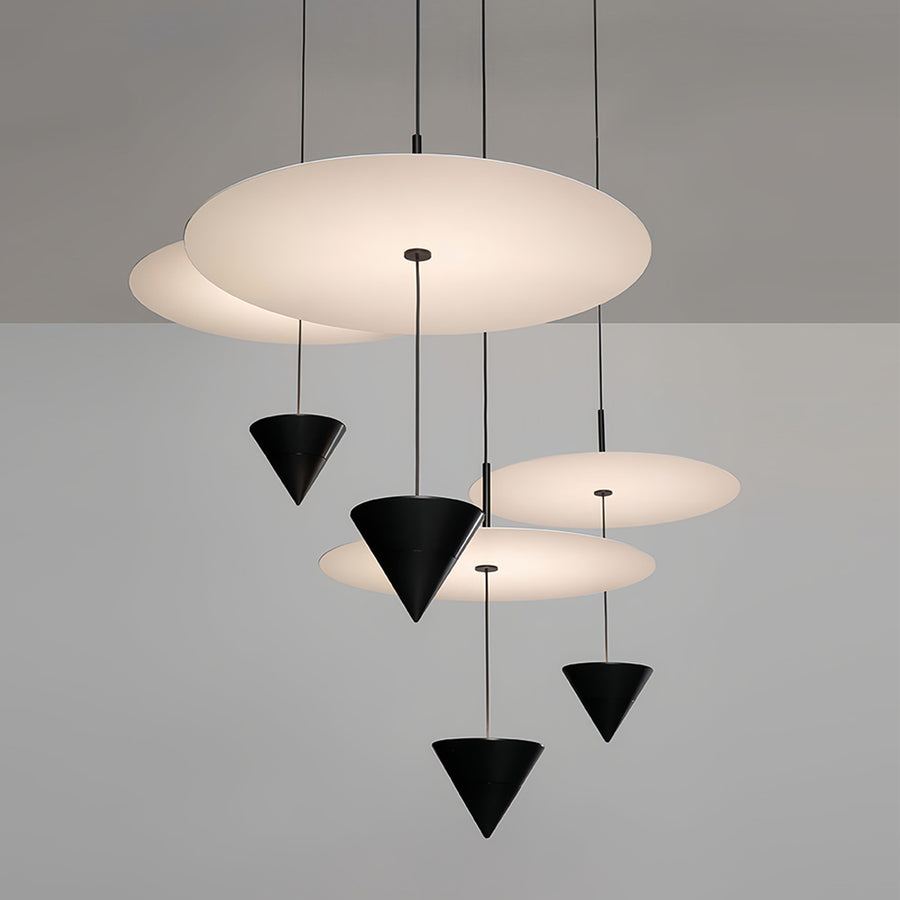

Cloud-like, ring, or interlocking decorative pendants create a softer visual identity above lounge seating. Their forms can express creativity and movement, contrasting with the disciplined linear fixtures used above desks. The pendants establish a focal point even when the lounge has no full-height enclosure.

Daylight-supported ambient illumination keeps the lounge connected to the rest of the office. Additional downlights or accents can reveal plants, artwork, side tables, and circulation boundaries. The decorative fixture should not create distracting brightness for employees working nearby.

Independent dimming allows the lounge to support informal work during the day and a more relaxed atmosphere for team gatherings. Furniture and lighting should be planned together so the fixture remains centered on the intended behavior rather than merely the room geometry.

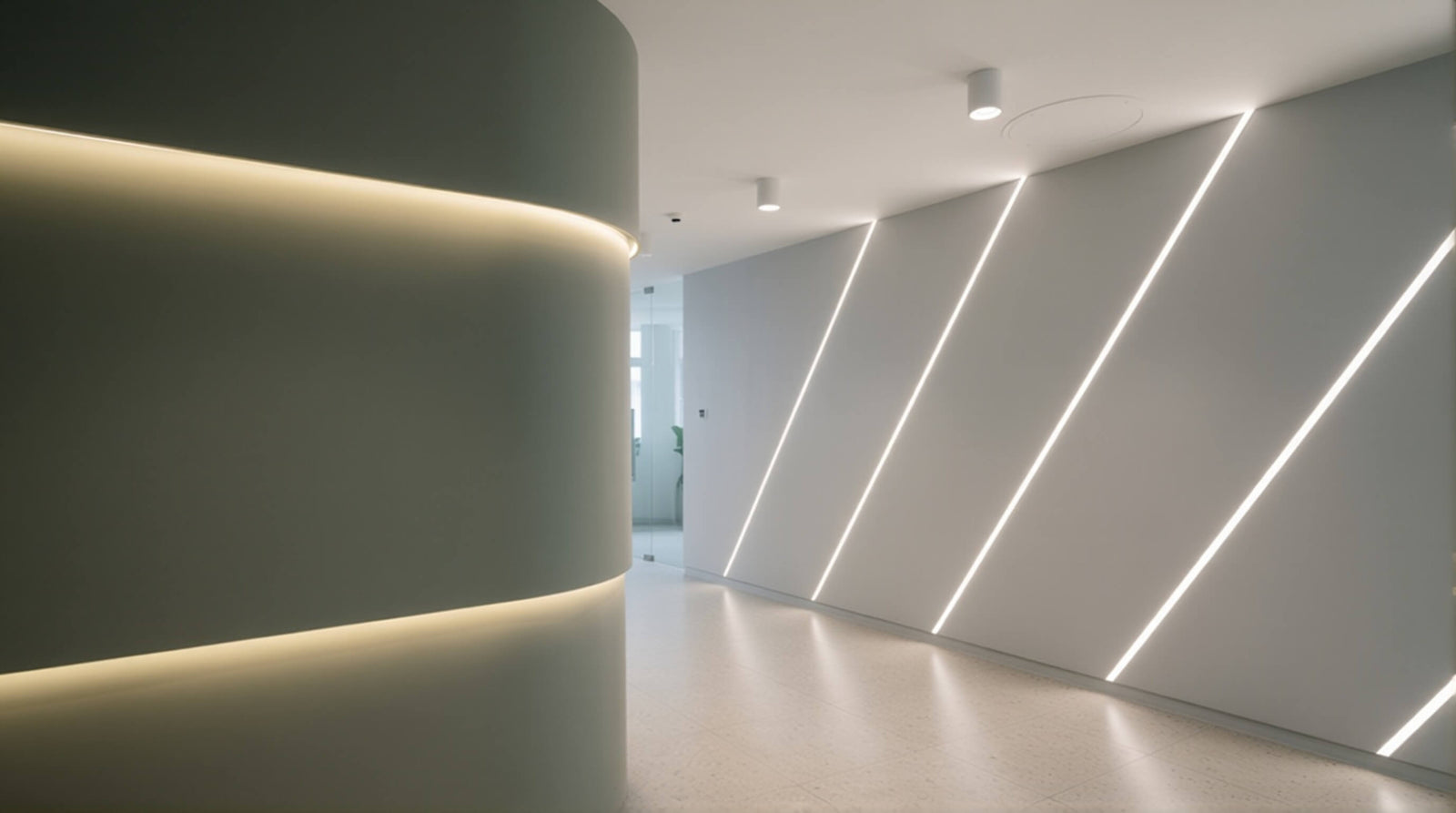

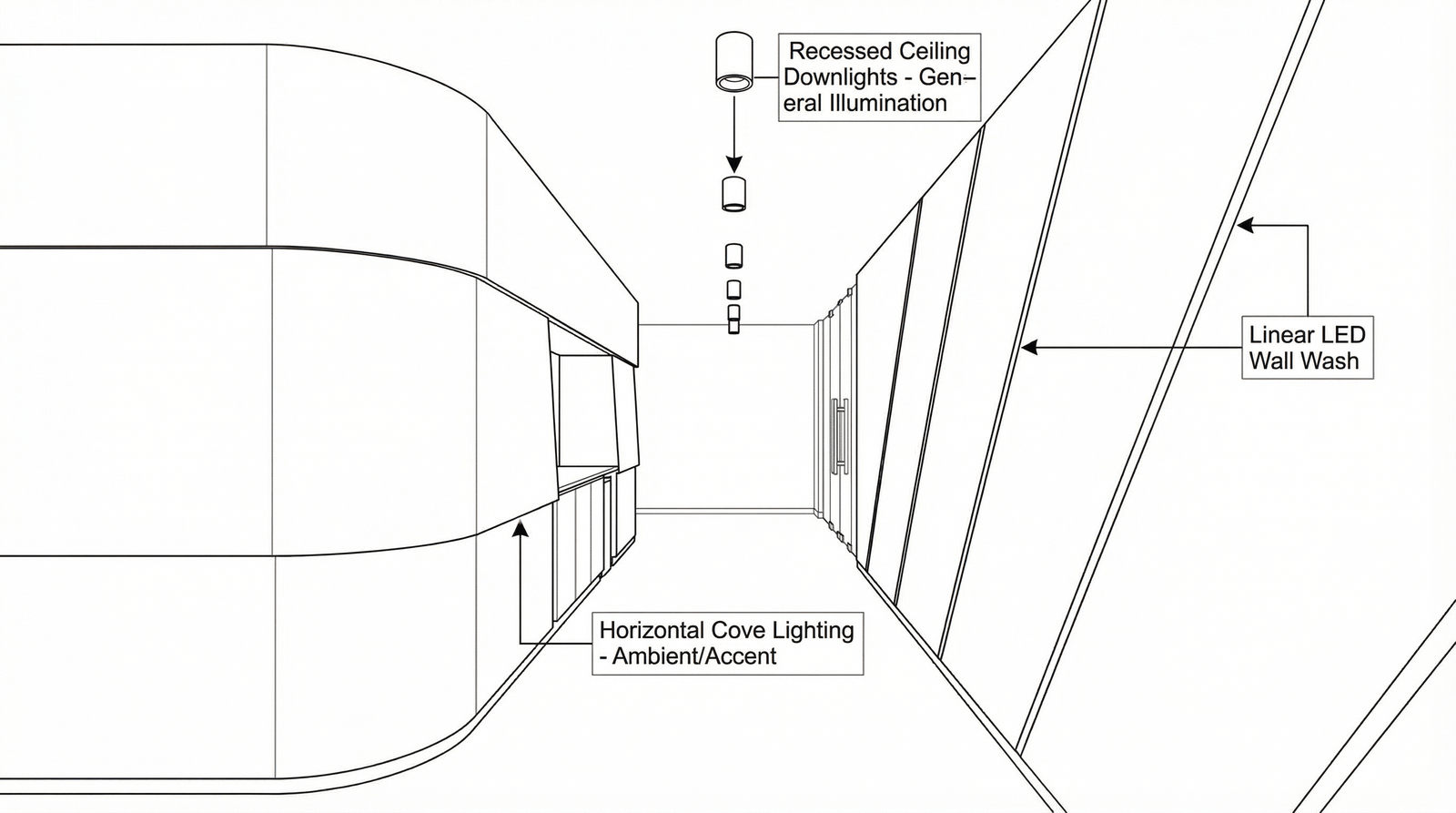

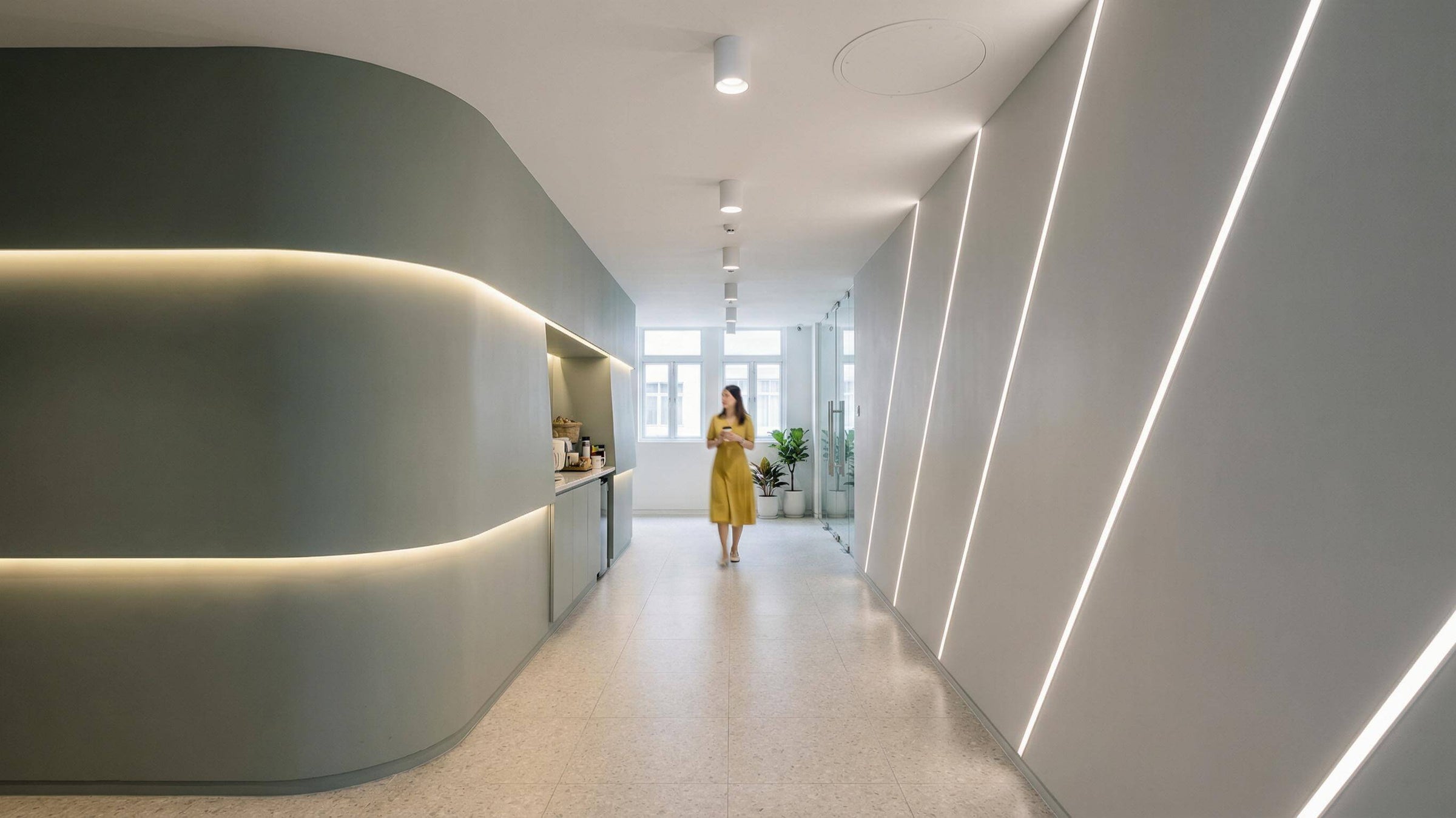

Turning a Feature Corridor Into Workplace Identity

Circulation is often treated as neutral space, but Northforge uses a feature corridor to make movement part of the studio experience. Integrated diagonal light lines and curved architectural surfaces create a memorable transition between zones.

Linear wall or ceiling details reinforce direction while expressing the design-led character of the workplace. The pattern should remain clear from the main approach, with clean junctions, consistent diffusion, and carefully resolved ends. Visible LED points or uneven brightness can weaken the architectural effect.

Concealed cove lighting softens the curved surfaces, while supporting ambient fixtures maintain practical visibility. Signs, doorways, intersections, and changes in level still need to remain easy to see. The feature should enrich wayfinding rather than compete with it.

Integrated light lines require early coordination with framing, wall systems, ceiling construction, wiring, drivers, access panels, and finishes. They are most successful when treated as architectural components rather than decorative strips added at the end of construction.

Architectural Cove and Integrated Lighting

Cove lighting creates brightness without exposing the source. It can shape ceilings, walls, booths, corridors, and transition zones while giving the studio a cleaner visual field. The illuminated surface becomes part of the lighting system.

Successful details need sufficient setback, suitable channel and diffuser, continuous output, ventilation where required, and accessible drivers. The cove surface should be smooth and consistently finished because imperfections become more visible under grazing or indirect light.

Output should be balanced with nearby downlights and pendants. An excessively bright cove may flatten the architecture or cause reflections in glass. Dimming allows the indirect layer to support different work modes without dominating the scene.

Choosing Fixtures for an Innovation Workplace

Suspended Linear Office Lighting

Linear fixtures support desks, design tables, and ordered work zones. Length, mounting height, diffusion, output, glare control, dimming, and alignment with furniture all influence performance.

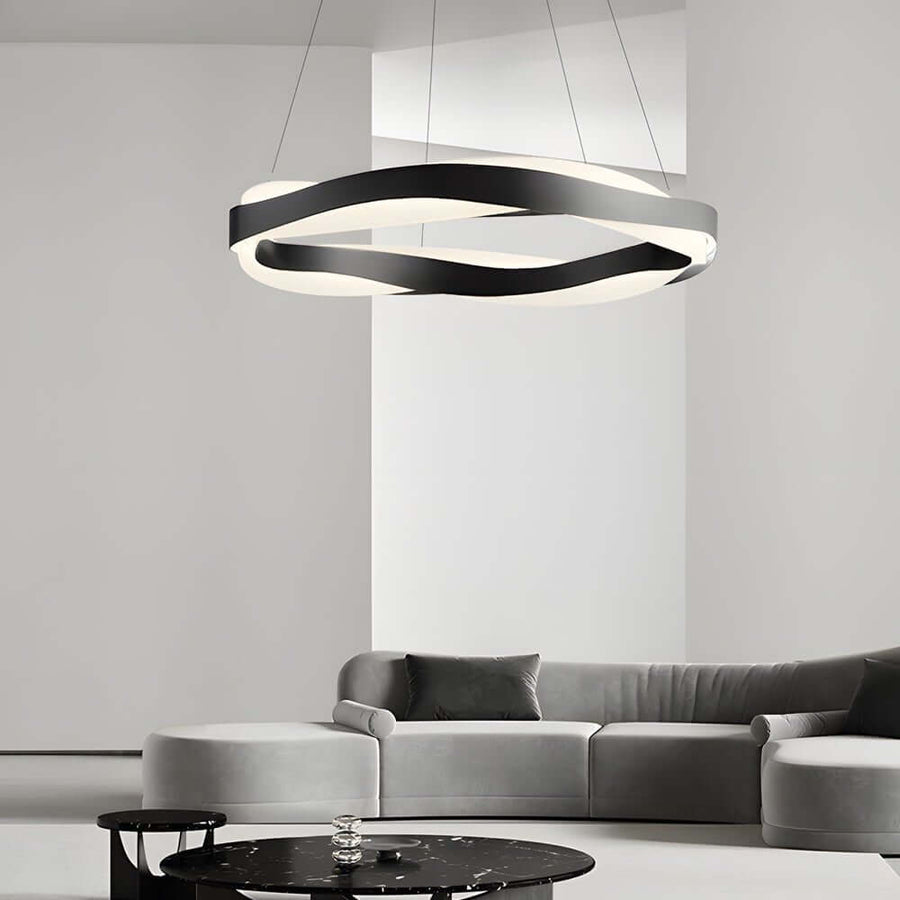

Round and Ring Pendants

Round pendants anchor pantry islands and shared tables, while ring or cloud-like fixtures distinguish collaboration lounges. Scale and suspension height should relate to the furniture and remain comfortable from surrounding viewpoints.

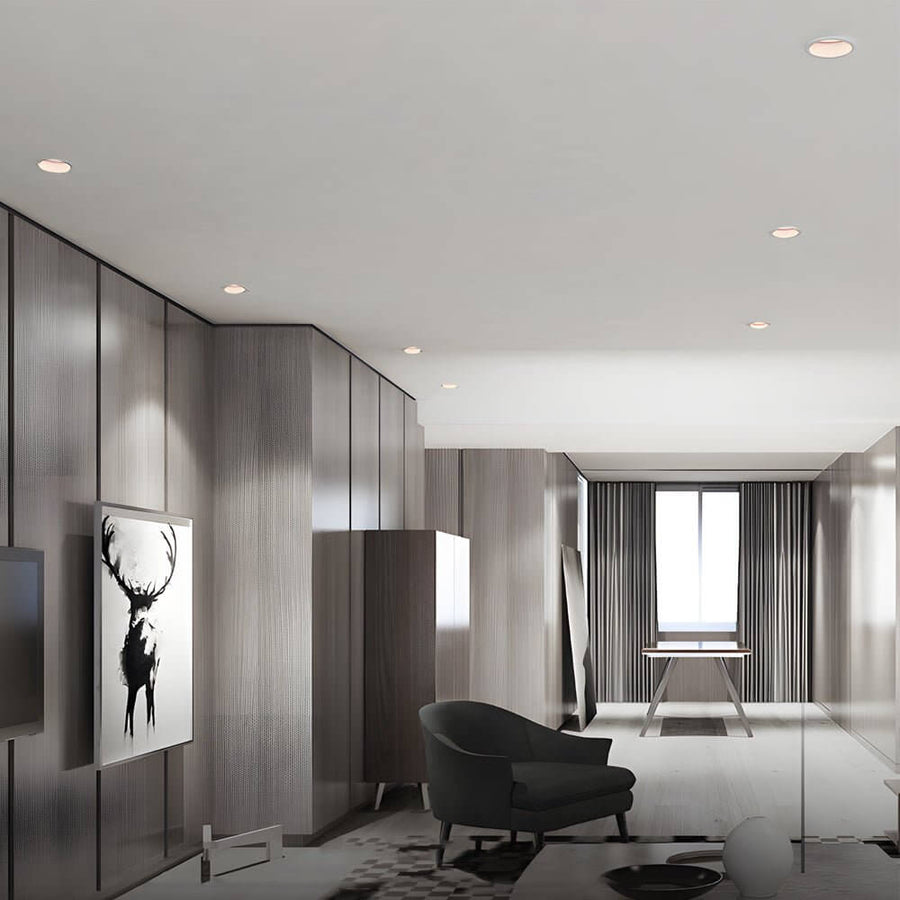

Recessed Downlights

Recessed fixtures provide quiet support in focus booths, corridors, transitions, and work areas. Deep shielding and controlled beams reduce glare, particularly where users sit close to the source.

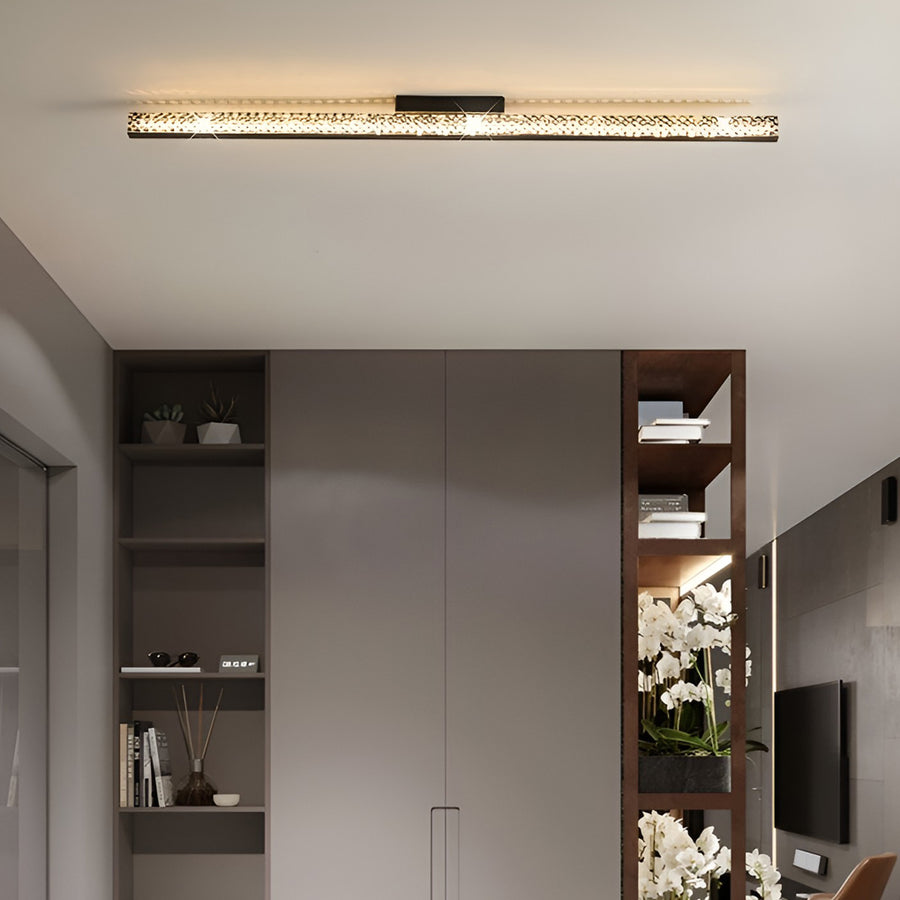

Integrated Wall and Corridor Lighting

Integrated light lines create architectural identity and support direction. Their channels, diffusion, power, access, and construction tolerances should be resolved before finishes are installed.

Color Quality and Visual Comfort

An innovation studio may contain screens, drawings, prototypes, samples, finishes, food, plants, and varied materials. Good color rendering supports accurate review and helps the workplace feel natural. Adjacent architectural and decorative fixtures should remain visually consistent.

Visual comfort depends on source brightness, shielding, reflections, and contrast. Desk areas require low-glare stability, while social zones can use softer decorative layers. The transition between them should feel intentional rather than abrupt.

Controls for Changing Studio Activities

The lighting system should respond to focused work, collaboration, presentations, social gatherings, cleaning, and after-hours use. Open workstations, pantry, booths, lounges, corridor features, and circulation need separate zones based on function.

Daylight response can reduce perimeter output, while occupancy or vacancy controls support intermittently used booths and enclosed areas. Manual dimming remains useful in collaboration spaces where teams need to change the atmosphere quickly.

Drivers, fixtures, sensors, and controls should be checked for compatibility. Smooth dimming is important when linear, cove, recessed, and decorative layers operate together in one view.

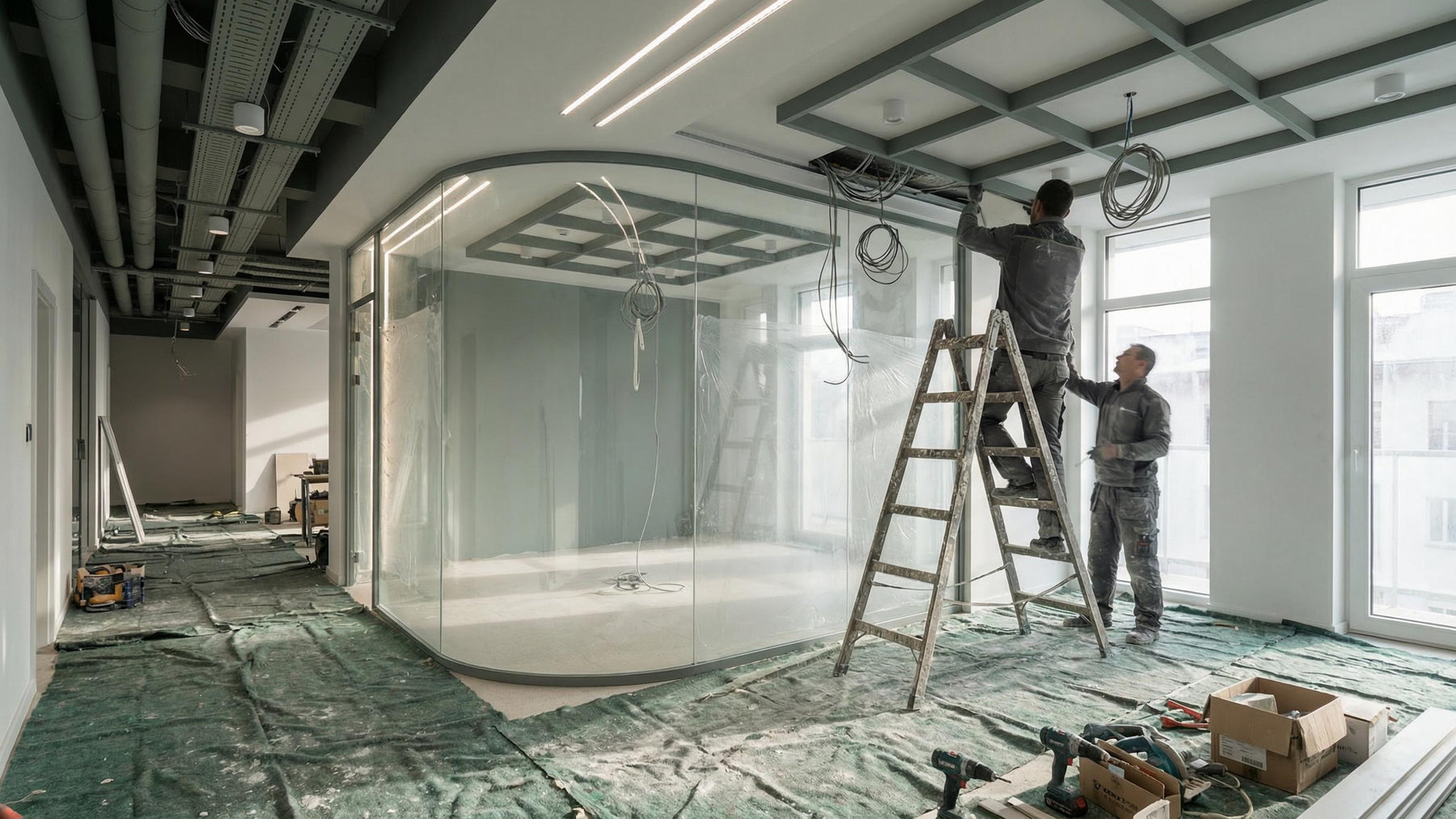

Installation and Future Flexibility

Innovation workplaces change as teams grow, projects evolve, and collaboration habits shift. Modular fixture systems, adjustable controls, accessible drivers, and adaptable zones make future changes easier.

Lighting must be coordinated with ceilings, acoustic treatments, sprinklers, air distribution, sensors, partitions, furniture, and technology. Decorative pendants need accurate mounting positions, while integrated light lines require early architectural detailing.

Final commissioning should happen after furniture, screens, glass, planting, and finishes are installed. Aiming, dimming, and scene settings can then be refined according to real employee viewpoints and activities.

A Visual System for an Innovation-Led Workplace

Northforge Innovation Studio uses light to make different behaviors visible. Linear fixtures establish discipline above focused workstations. Round pendants turn the pantry into a social anchor. Cove light and table lamps create quieter focus booths. Sculptural pendants identify collaboration areas, while diagonal corridor lines make circulation part of the studio identity.

The result is a creative workspace that feels technically organized without becoming conventional. By coordinating architectural, task, decorative, ambient, and wayfinding lighting, an innovation studio can support concentrated work, informal exchange, and memorable spatial character within one connected environment.
